Intro

The Google Drive Metadata Connector fetches metadata from your Google Drive to manage files. You may retrieve this data for your Drive or choose to filter by file location or keywords within your file names. The Google Drive Metadata Connector provides a file’s name, type, and owner, as well as users who have access and at what level. You will also be able to view a file’s size and whether it counts towards your Google Drive’s overall storage quota. You will additionally be able to see the amount of storage allotted for your Google Drive. The Google Drive Metadata Connector allows you to view your files’ locations and provides a link to view that file within your Google Drive. Finally, you will also be able to view when a file was last edited. For more information on the Google Drive API, refer to https://developers.google.com/drive/api/guides/about-sdk. You can connect to your Google Drive Metadata account in the Data Center. This topic discusses the fields and menus that are specific to the Google Drive Metadata connector user interface. To add DataSets, set update schedules, and edit DataSet information, see Adding a DataSet Using a Connector.

​
Prerequisites

To connect to your Google Drive Metadata account and create a DataSet, you need to set up a Google Cloud Console project to handle the OAuth 2.0 process. If you already have a Google Cloud Console project setup, you either need to create a new one for the Google Drive Metadata Connector or configure it to include the following: Authorized Domain: domo.com Redirect URI: https://oauth.domo.com/api/data/v2/oauth/providers/google-drive-metadata-98e4dc30-1712-4b80-85ec-ed6cf3cb1e6b/exchange

​
Setting Up a Google Cloud Console Project

  1. Navigate to https://cloud.google.com/cloud-console.
  2. On the top right corner of the screen, select Console.
  3. If you are accessing Google Cloud Console for the first time, log into the correct account, select the correct country of residence, read the terms of service, and select AGREE AND CONTINUE.
  4. On the top left corner of the screen, click the project name.
  5. If you are logging into Google Cloud Console for the first time, on the top left corner select My Project
    NEW PROJECT (It is recommended that you enter the Project name as Domo Drive Connector).
  6. Select the Location as applicable or select No organization, and click CREATE.
The Google Cloud Console home page appears.
  1. On the top left corner of the screen, select the name of the project you have created. (OR) If you are logging into Google Cloud Console for the first time, on the top left corner select My Project > NEW PROJECT and you will find the list of projects previously created. Select the name of your project. The created Project’s home page appears.
  2. Scroll below and select APIs & Services under Quick access.

​
Enabling APIs

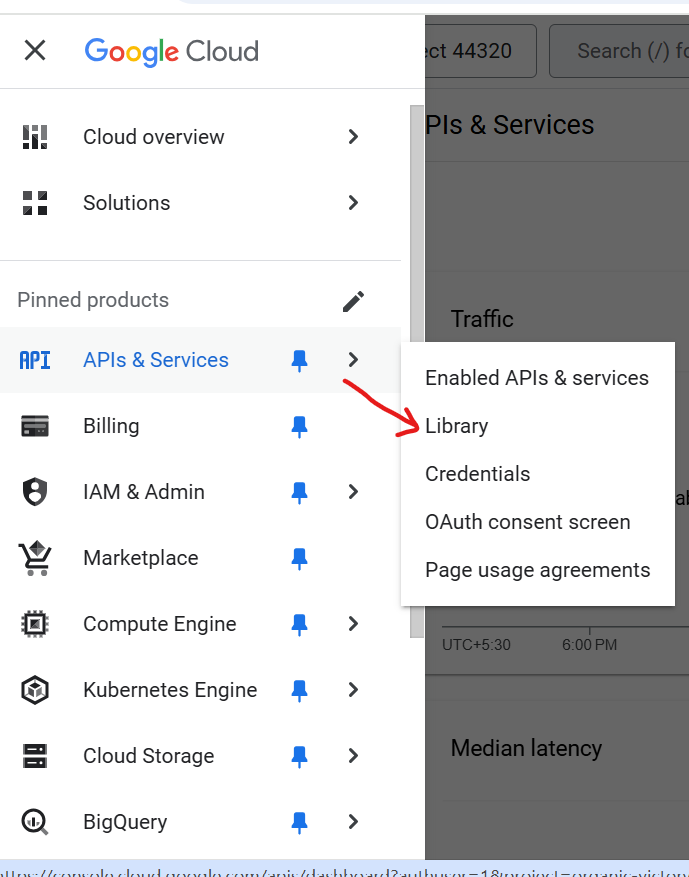

  1. On the left navigation menu, select APIs & Services > Library.
  1. Scroll down the page and under Google Workspace select Google Drive API. The Google Drive API page opens.
  2. Click Enable, which allows the API to be used with your project. You will be returned to the APIs & Services page.

​
Setting up OAuth 2.0

  1. In the APIs and Services page, select OAuth consent screen.
The OAuth consent screen opens.
  1. Under User Type, select the External radio button, and click CREATE.
A new page appears where you can configure your OAuth consent screen.
  1. In the App name field, enter the app name (It is recommended that you enter the app name as Google Drive Metadata Connector).
  2. In the User support email drop-down field, select the email (It is recommended to use your email, you will be able to add users in a later step).
  3. You don’t have to add an App logo or App domain.
  4. Under Authorized domains section, click + ADD DOMAIN, and in the Authorized domain field that appears enter domo.com.
  5. Under Developer contact information, enter your email address, and click SAVE AND CONTUNUE.
The next step in the app registration process, Scopes appears.

​
OAuth 2.0: Scopes

  1. Select ADD OR REMOVE SCOPES.

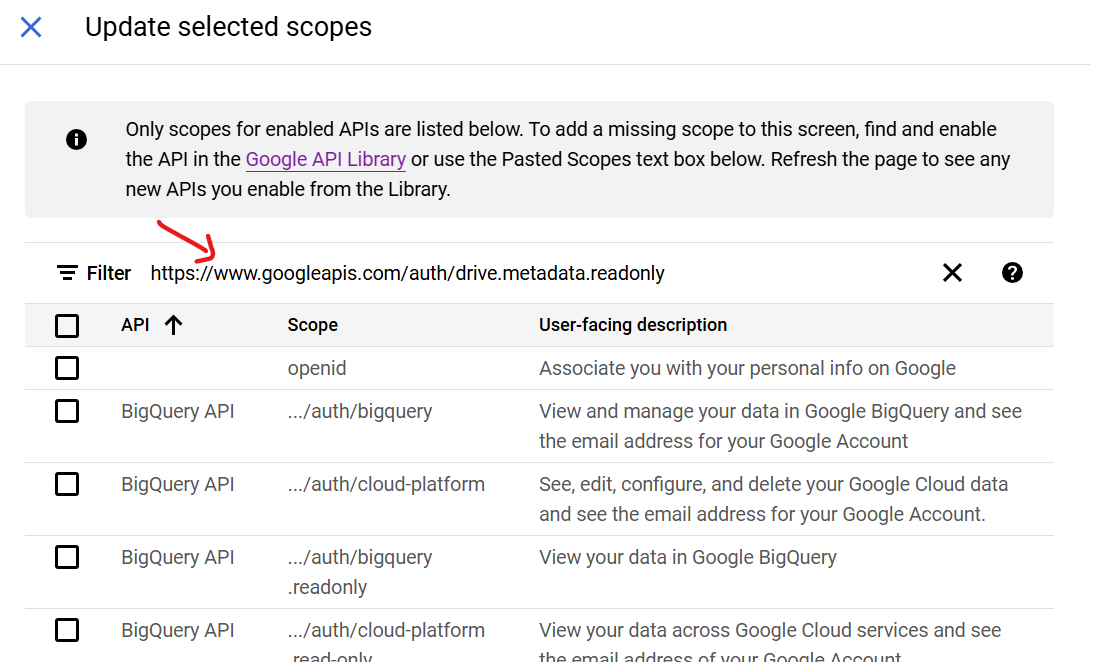

The Update selected scopes window appears.
  1. In the Enter property name or value search field, enter https://www.googleapis.com/auth/drive.metadata.readonly (this is the Google Drive Metadata scope, and must be entered exactly as provided).
  2. After entering the scope, click the suggestion under Values.
  3. Select the Google Drive API checkbox, select UPDATE, and click SAVE AND CONTINUE. You should ensure to verify that you that the scope you entered is listed under Your restricted scopes section in the Scopes window. The scope appears as …/auth/drive.metadata.readonly. Note: Its is really important that the scope is copied correctly as provided, as the scope need to match the scope used by the connector.
  1. Once you have confirmed that the scope has been added, click SAVE AND CONTINUE.
When you click Save And Continue the Scopes window closes and the the next step in the OAuth process, which is Test Users window opens.

​
OAuth 2.0: Test Users

This page enables you to configure the Test users. These users will be able to use the connector with the credentials created in this process. Up to 100 users can be added without publishing the app through Google.
  1. Select + ADD USERS. The Add users window appears.
  2. In the Add users window, enter the email addresses associated with the Google accounts of the users who will be able to use the credentials created in the project for the OAuth 2.0 process. Note: It is recommended that you add anyone from your Domo Instance who will be using the connector. The list of users added will not have access to the Google Cloud Console project or your Google Drive. It only allow them to use the credentials created to complete the OAuth 2.0 process.
  3. Once you have added the necessary users, click ADD. The users can be added or removed later as well.
Note: Even if an email is used elsewhere (that is for the User Support Email), you still need to add the user as a Test user.
  1. Click SAVE AND CONTINUE. The Summary page appears.

​
OAuth 2.0: Summary

  1. Ensure that all the information is correct, and click BACK TO DASHBOARD. you will be navigated back to the OAuth consent screen.

​
Creating a Client ID

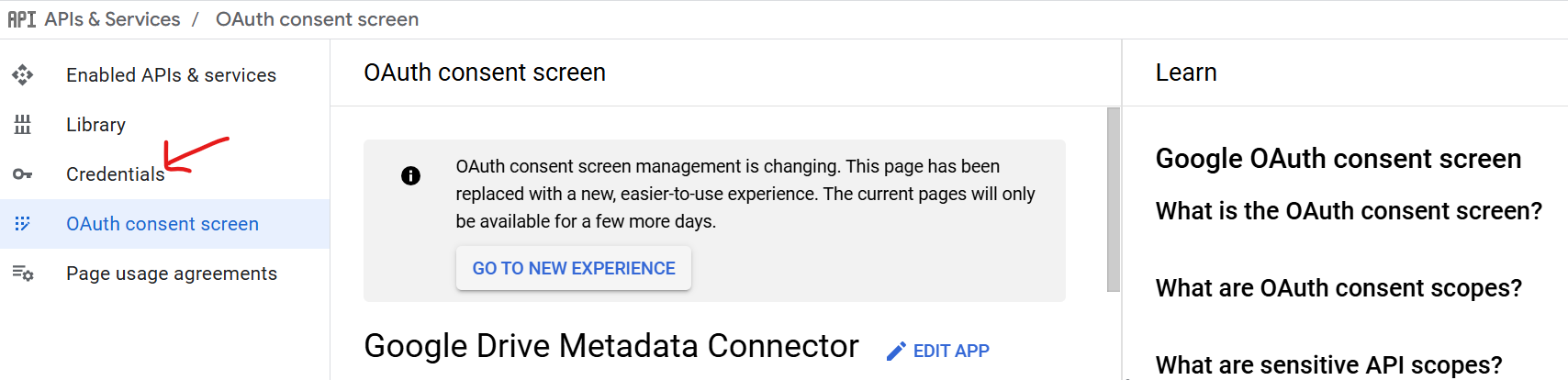

  1. In the OAuth consent screen, click Credentials.
  2. Click + CREATE CREDENTIALS > OAuth client ID.
  3. From the Application type drop-down list, select Web application.
  4. In the Name field, enter a client name (it is recommended that you use the client name as Domo Drive Connector Client).
  5. Scroll to the Authorized redirect URIs section, and click + ADD URI.
  6. In the URIs text box, enter https://oauth.domo.com/api/data/v2/oauth/providers/google-drive-metadata-98e4dc30-1712-4b80-85ec-ed6cf3cb1e6b/exchange.
  7. Click CREATE.
  8. A pop-up window appears with the generated Client ID and Client secret. Ensure to save the Client ID and Client secret in a secure place, but you can also view in your cloud console by navigating back to the Credentials Dashboard. These credentials can also be downloaded in JSON format.

​
Connecting to Your Google Drive Metadata Account

This section enumerates the options in the Credentials and Details panes on the Google Drive Metadata Connector page. The components of the other panes on this page, Scheduling, and Name & Describe Your DataSet, are universal across most connector types and are discussed in great detail in Adding a DataSet Using a Connector.

​
Credentials Pane

Once you have entered valid Google Drive Metadata credentials, you can use the same account at any time to create a new Google Drive Metadata DataSet. You can manage connector accounts in the Accounts tab in the Data Center. For more information about this tab, see Manage Connector/Adapter Accounts.

​
Details Pane

Select the Google Drive Metadata report you want to run. The following reports are available:
Menu Description
Report
Report Name Description

​
Drive

Fetches the metadata from files within your Google Drive.
File Name ContainsEnter the word(s) for which you would like to filter the file names.
File LocationEnter the name of the location or the folder that contains the files for which you would like to receive the data. Note that “Shared with Me” and “My Drive” are considered their own, separate locations.

​
Other Panes

For information about the remaining sections of the connector interface, including how to configure scheduling, retry, and update options, see Adding a DataSet Using a Connector.
