Intro
Schema Management is part of the Governance Toolkit and allows you to update a schema, and clone and clear a DataSet. Schema Management is primarily meant for the following use cases:- Cloning connectors with complex connector settings
- Clearing data from a Domo-managed DataSet
- Manually updating schemas for DataSets that have custom data being programmatically uploaded
- Access Schema Management in the Toolkit
- Required grants
- Update a schema
- Clone a DataSet
- Clear a DataSet
Access Schema Management in the Toolkit
Follow these steps to access Schema Management in the Governance Toolkit:- Navigate to the Admin Settings.
- Under Governance, select Toolkit.
-
Inside the Toolkit, go to
Schema Management.
Required Grants
To access the Governance Toolkit, a user must have one of two grants enabled for their role: Create Custom Pipeline Processes or Administer Custom Pipeline Processes. By default, the Administer Custom Pipeline Process grant is enabled for Admin users.Create Custom Pipeline Processes
- Allows the user to create, update, share, and delete jobs.
- Only allows the user to view jobs that they created or jobs that have been shared with them.
(Admin-level) Administer Custom Pipeline Processes
- Allows the user to create, update, share, and delete jobs.
- Allows the user to see all jobs within the pipeline.
Update a Schema
You can use Schema Management to update the schema of existing DataSets. Follow the steps below:- Access Schema Management.
- Locate the DataSet you want to update by scrolling through the list or using the search bar.
- Select the DataSet to view its details.
-
Select
Edit.
In the editing view, you can make the following changes:
- Reorder columns
- Rename columns
- Remove columns
- Add columns
- Change column descriptions
- Change column types
- Change the DataSet name and description
To add columns, select
under Actions. To delete columns, select
.

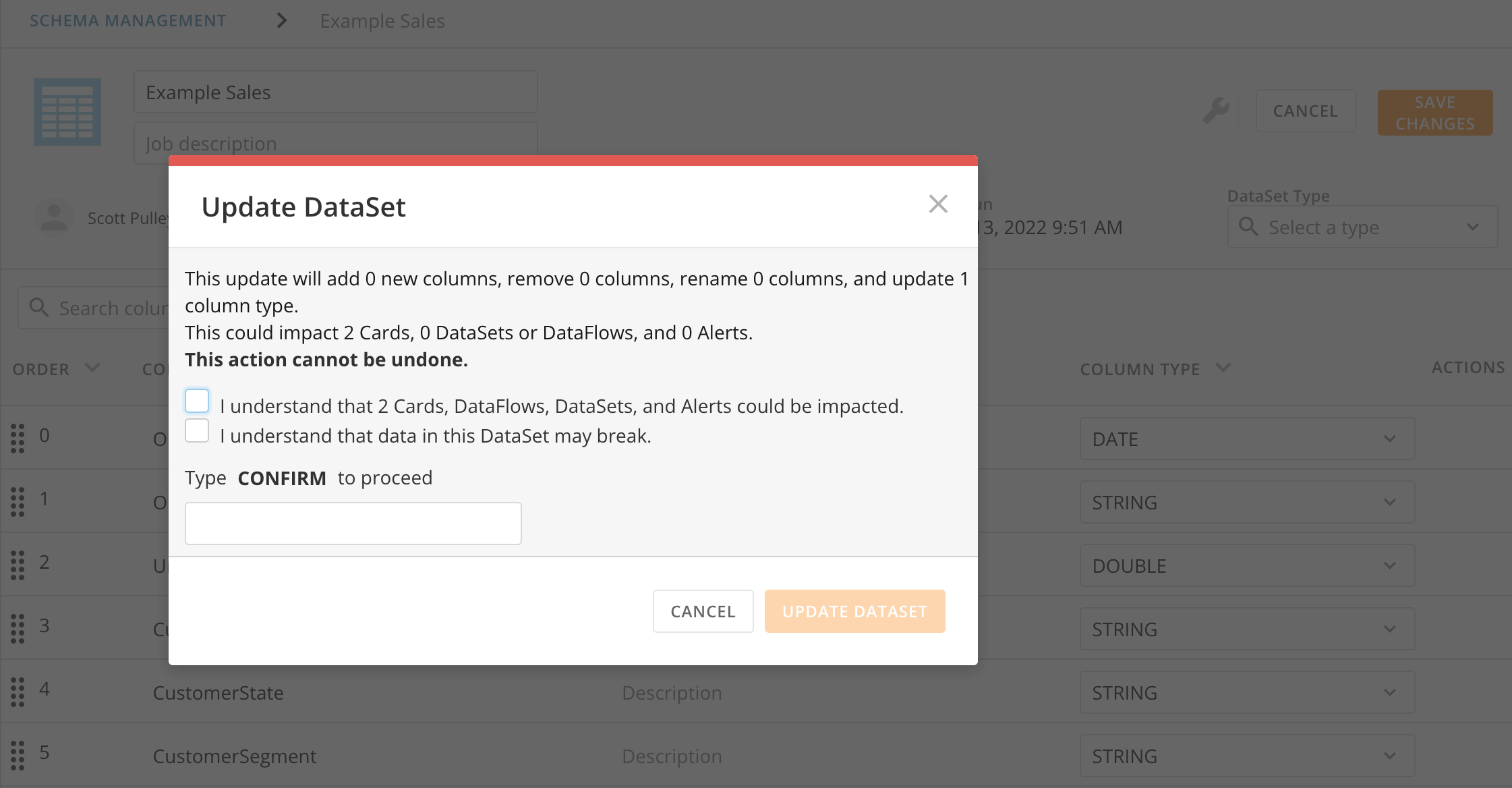

- Select Save Changes. The Update DataSet dialog displays.
-
Check the following boxes to confirm that you understand the changes.
- Type CONFIRM (all caps) in the field and select Update DataSet to save your changes.
Clone a DataSet
You can clone an existing DataSet. Cloning a DataSet copies the schema of the existing DataSet and creates a new DataSet with the same schema. You can also choose to copy data from the existing DataSet. Cloning a DataSet does not copy connector settings or scheduling. Follow the steps below to clone a DataSet:- Access Schema Management.
- Locate the DataSet you want to clone by scrolling through the list or using the s earch bar.
- Select the DataSet to view its details.
-

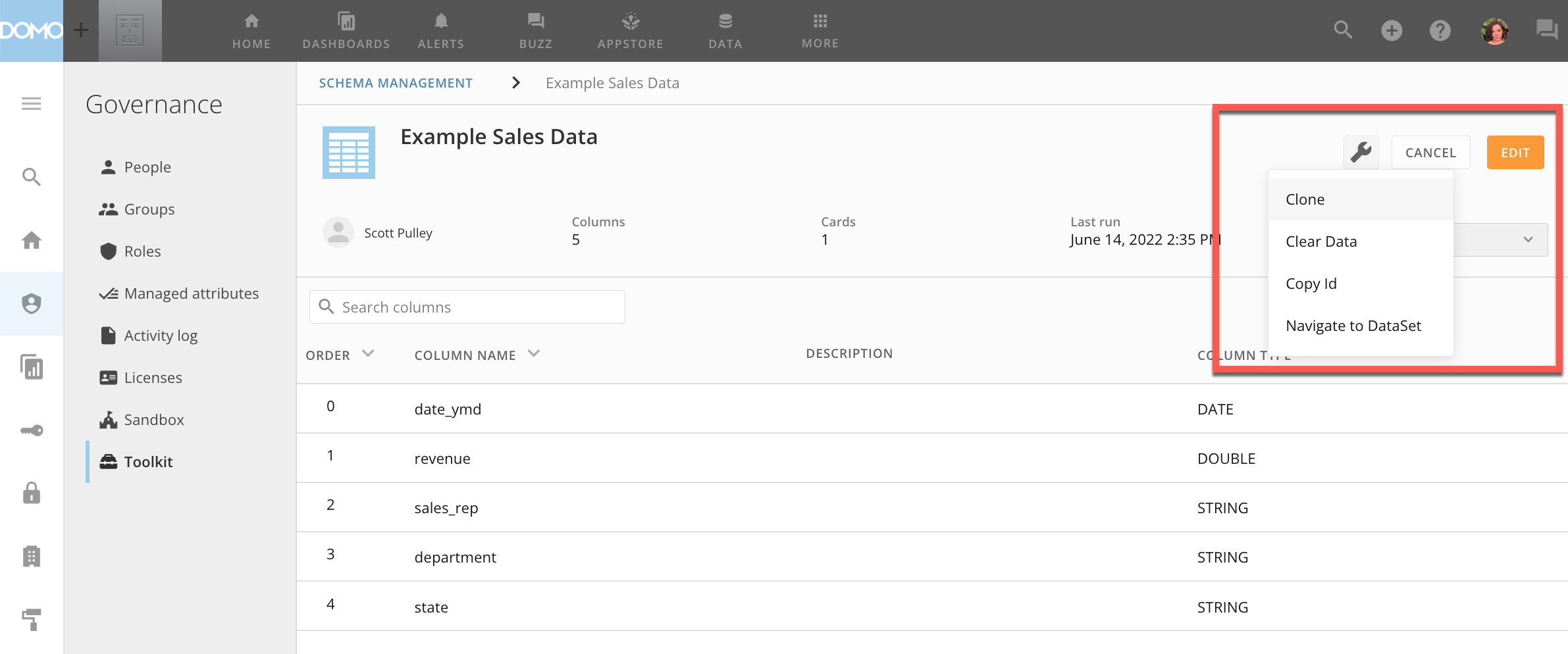

Select
Options > Clone.
The Clone DataSet modal displays.
-
In the modal, you can change the DataSet clone’s name, description, and type. Checking the box to copy data rows from the existing DataSet preserves the original configuration and allows you to edit the clone.
-
Select
Clone DataSet to close the modal and clone your DataSet.
Note: The new DataSet can take several minutes to generate.
Clear a DataSet
You can clear data from a DataSet. This option removes all existing data from a DataSet while preserving the existing DataSet schema. To clear a DataSet, follow the steps below:- Access Schema Management.
- Locate the DataSet you want to clear by scrolling through the list or using the s earch bar.
- Select the DataSet to view its details.
-

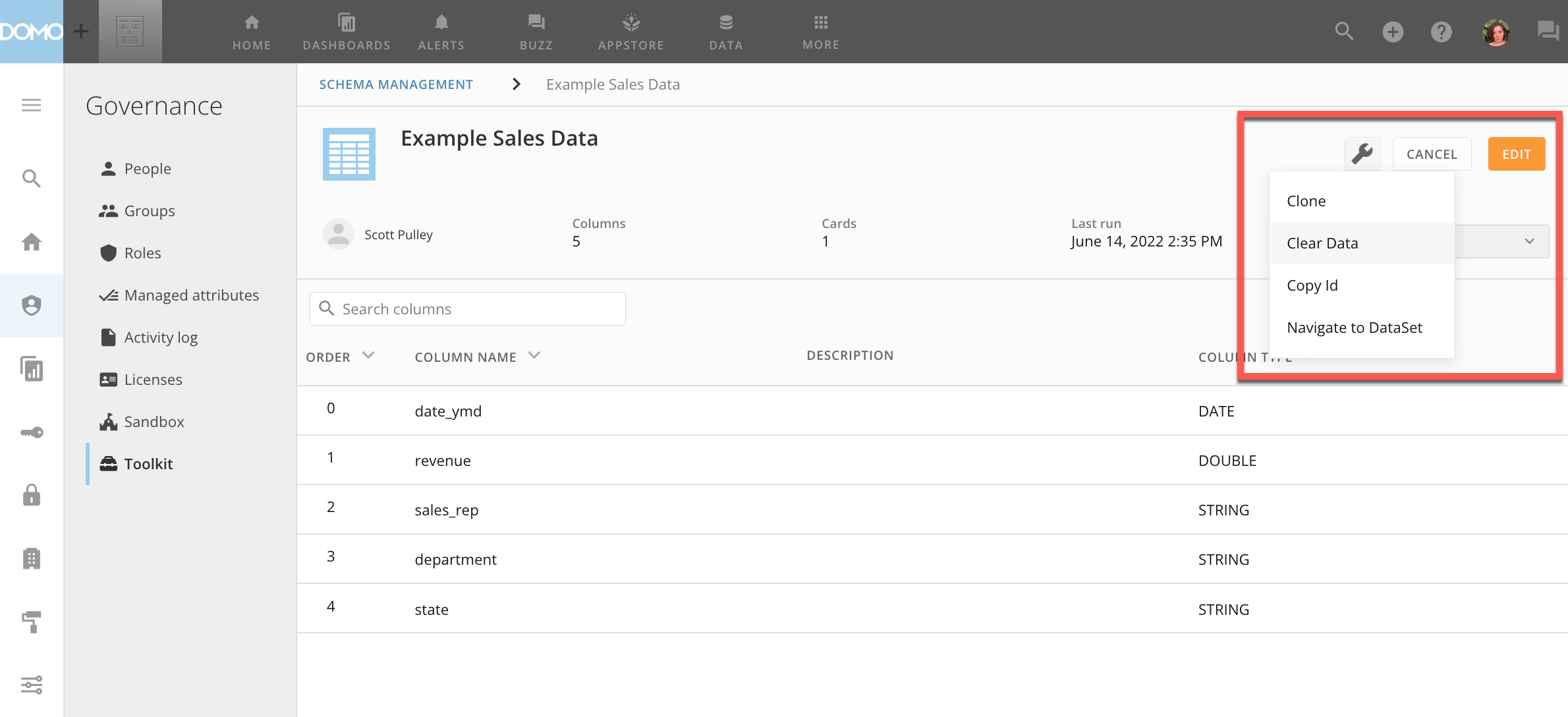

Select
Options > Clear Data.
The Clear Data dialog displays the number of rows to be cleared and the impact of clearing this data on data downstream.
- Select Continue.
- Check the boxes to confirm the impact and the number of rows being removed.
-
Type CONFIRM (all caps) in the field and select
Clear Data to clear the data and close the dialog.
