A nested bar with line chart is a combination of a Chart Properties ). The line and gray total bars are measured on the left vertical axis, and the colored series bars are measured on the right axis.

​
Powering nested bar with line charts

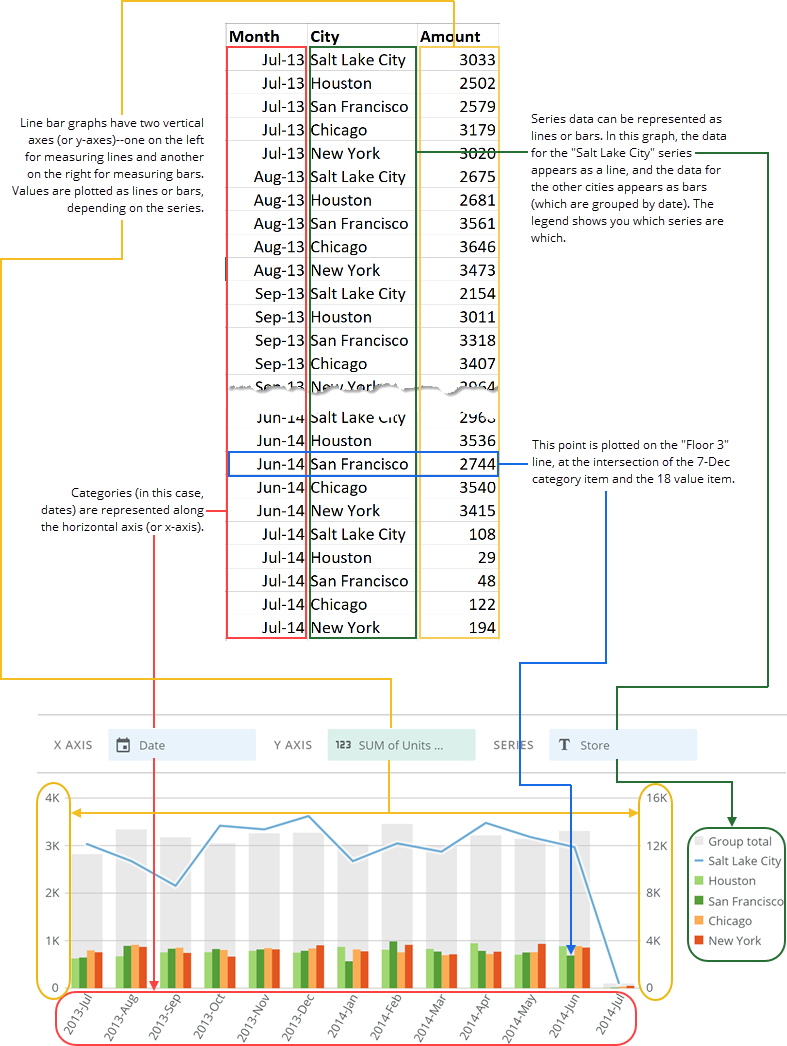

Nested bar with line charts require three columns or rows of data from your DataSet—one for series, one for categories, and one for values. For information about value, category, and series data, see Understanding Chart Data. In the Analyzer, you choose the columns containing the data for your nested bar with line chart. For more information about choosing data columns, see Applying DataSet Columns to Your Chart. For more information about formatting charts in the Analyzer, see KPI Card Building Part 2: The Analyzer. The following graphic shows you how data from a typical column-based spreadsheet is converted into a nested bar with line chart:

​
Customizing nested bar with line charts

You can customize the appearance of a nested bar with line chart by editing its Chart Properties and by changing the sorting, scale syncing, and number formatting.

​
Chart Properties

Unique Chart Properties of nested bar with line charts include the following. You can click a thumbnail image to see a larger image. For information about all Chart Properties, see Chart Properties.

Property

Description

Example

General > Series on Left Scale

Determines how many series in your chart appear as lines. By default, the first series that appears in your legend for these chart types becomes a line, and all remaining series become bars. However, you can convert series from bars to lines by entering the desired number of lines here. For example, if your chart had three series, the first series appearing in your legend would appear as a line, and the remaining two series would appear as bars. You could turn the second series into a line by entering 2 in the Series on Left Scale field.

—

General > Sort Each Category

Allows you to sort the items in each individual category in most kinds of multi-series bar and lollipop charts. You can choose an ascending or descending sort. If you select Default , the default sort is applied. This option does not work when the Value Scale > Log Scale box is checked.

In the example at right, bars within all categories are sorted in descending order.


Data Label Settings > Show Group Total

Determines whether data labels appear over the gray “total” bars in nested bar charts. The chart at right shows an example of this.


​
Sorting

You can manipulate which series becomes lines and bars in a nested bar with line chart by changing the series order in your legend. By default, the sort method is set to No Sorting, which arranges your series in alphabetical order. For most charts with both lines and bars, this is not the optimal sort method. For the best results, do the following:
  • Ensure that the series that should correspond to the line appears first in your DataSet
  • Choose an item-based sorting method, either ascending or descending
Because item-based sorting sorts the items in the DataSet alphabetically by category, with the series items in each category appearing in the same order that they appear in the spreadsheet, the first series in your DataSet becomes the line. For more information about sorting, see Sorting the Data in Your Chart.

​
Changing scale formatting

It is possible to have separate number formatting for both vertical axes in a nested bar with line chart. For example, you could have percent symbols affixed to the values in one axis and currency symbols affixed to the values in the other. You can do this in the Format menus or the Chart Properties. Domo recommends that you use Chart Properties to make formatting changes, not the Format menus, because the options in the Format menus are overridden by formatting changes in Chart Properties. For more information about formatting numbers, see Formatting Values in Your Chart.
