Intro

Jupyter Workspaces allows you to write AI prompts within Notebooks. Jupyter uses the same prompts as in the Domo. AI Playground without navigating away from Jupyter. Learn more about Jupyter AI and the AI Playground.

​
Required Grants

To access Jupyter, at least one of the following grants must be enabled for your role:
  • Create Jupyter Workspace — Allows a user to create, edit, and delete Jupyter Workspaces to which they have access.
  • Manage Jupyter Workspace (Jupyter Admin) — Allows a user to view, edit, and delete any Jupyter Workspaces in the instance. This grant is needed to enable workspace sharing for other users.

​
Access Jupyter Workspaces

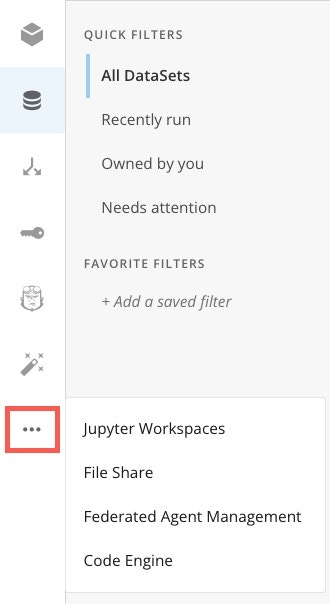

In the navigation header, select Data to open the Data Center. In the left navigation, select More (three horizontal dots icon) > Jupyter Workspaces.
jupyter workspaces.jpg
Learn more about creating a Workspace.

​
Use the Generate Text Prompt

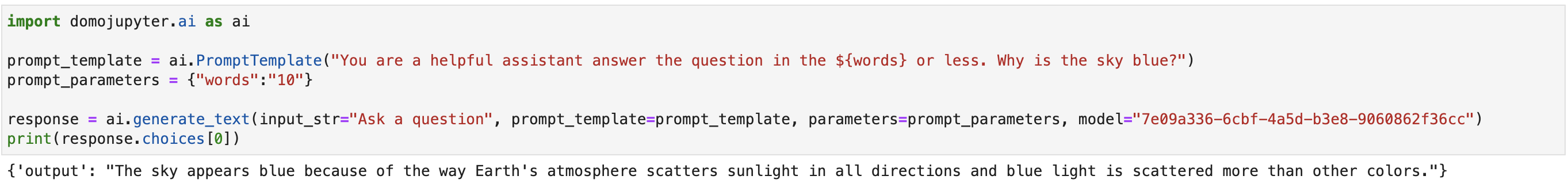

The generate_text prompt provides answers to questions. In the example, the prompt provided to the AI service is in the prompt_template. It is given a limitation of $, which is provided in the prompt_parameters. The output prompt is provided at the bottom.
Screenshot 2024-09-18 at 2.04.56 PM.png
You can modify the standard generate_text template by providing a new prompt to the input_str — the prompt_template overrides the input_str. To use input_str, the prompt_template and prompt_parameters must be deleted. The following parameters are available in the generate_text function. All of the parameters are optional except input_str.
def generate_text(input_str:str,
          prompt_template: Optional[PromptTemplate] = None,
          parameters: Optional[dict[str, str]] = None,
          model: Optional[str] = None,
          model_configuration: Optional[dict[str, object]] = None,
          system: Optional[str] = None):
  """
  Generate text from String input

  Parameters:
    input_str (str): input string
    prompt_template (PromptTemplate): prompt template
    parameters (dict[str, str]): parameters
    model (str): model name
    model_configuration (dict[str, object]): model configuration
    system (str): Optional override for the default system instructions included with the prompt to the model.

  Returns:
    response: generated text
  """
  text_generation_request = TextGenerationRequest(input_str, prompt_template, parameters, model,
model_configuration, system)
 text_response = _jupyterhub.generate_text(text_generation_request.to_json())
text_ai_response = TextAIResponse(text_response['prompt'], text_response['choices'])
return text_ai_response

​
Use the Text-to-SQL Prompt

The text_to_sql prompt provides a SQL query based on the question asked. In the example, the prompt provided to the AI service is in the prompt_template, and the specified column is in the prompt_parameters. The functional SQL query is provided in the output at the bottom.
text to sql.png
You can modify the standard text_to_sql template by providing a new DataSourceSchema and an input_str that specifies what the AI prompt should write. You can also provide the workspace_data_source_alias for an existing DataSet attached to the workspace. Providing the workspace_data_source_alias allows the workspace to use the schema when generating the column names for the SQL query. The following parameters are available in the text_to_sql function. All of the parameters are optional except input_str.
def text_to_sql(input_str: str,
         prompt_template: Optional[PromptTemplate] = None,
         data_source_schemas: Optional[list[DataSourceSchema]] = None,
         parameters: Optional[dict[str, str]] = None,
         model: Optional[str] = None,
         model_configuration: Optional[dict[str, object]] = None,
         workspace_data_source_alias: Optional[str] = None,
         dataframe: Optional[pd.DataFrame] = None,
         system: Optional[str] = None
         ):
   """
   Convert text to SQL

   Parameters:
     input_str (str): input string
     data_source_schemas (list[DataSourceSchema]): list of data source schemas
     prompt_template (PromptTemplate): prompt template
     parameters (dict[str, str]): parameters
     model (str): model name
     model_configuration (dict[str, object]): model configuration
     workspace_data_source_alias (str): data source schema alias associated to workspace
     dataframe (pd.DataFrame): Pandas dataframe
     system (str): Optional override for the default system instructions included with the prompt to the model.

   Returns:
     text_ai_response: TextAiResponse
   """   if workspace_data_source_alias is not None:
      data_source_schemas = [
        DataSourceSchema.from_optional_list(domojupyter.io.get_schema_from_datasource(workspace_data_source_alias).get('schema'),
          workspace_data_source_alias)]
   elif dataframe is not None:
      schema = domojupyter.io.get_schema_from_dataframe(dataframe)
      data_source_schemas = [
        DataSourceSchema.from_optional_list(schema,
          dataframe.name)]
   text_to_sql_request = TextToSQLRequest(input_str, data_source_schemas, prompt_template, parameters, model,
                         model_configuration, system)
   sql_response = _jupyterhub.text_to_sql(text_to_sql_request.to_json())
   text_ai_response = TextAIResponse(sql_response['prompt'], sql_response['choices'])
   return text_ai_response

​
Use the Text-to-Beast-Mode Prompt

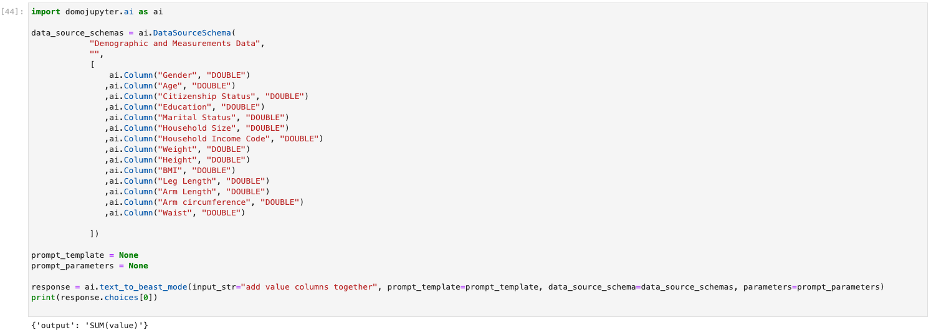

The Text-to-Beast-Mode service provides a Beast Mode function based on the question asked. In the example, the prompt provided to the AI asks to add all of the value columns (data_source_schemas) together. The Beast Mode function is provided in the output at the bottom.
text to beast mode.png
The following parameters are available in the text_to_beast_mode function. All of the parameters are optional except input_str.
def text_to_beast_mode(input_str: str,
         prompt_template: Optional[PromptTemplate] = None,
         data_source_schema: Optional[DataSourceSchema] = None,
         parameters: Optional[dict[str, str]] = None,
         model: Optional[str] = None,
         model_configuration: Optional[dict[str, object]] = None,
         system: Optional[str] = None):
  """
  Convert text to Beastmode

  Parameters:
      input_str (str): input string
      data_source_schema (DataSourceSchema): data source schema
      prompt_template (PromptTemplate): prompt
      parameters (dict[str, str]): parameters
      model (str): model name
      model_configuration (dict[str, object]): model configuration
      system (str): Optional override for the default system instructions included with the prompt to the model.

  Returns:
    sql: SQL string
  """

​
Use the Summarize Text Prompt

The summarize_text prompt provides a text summary based on the question asked. In the example, the prompt provided to the AI service is in text_summarization. The output prompt is provided at the bottom.
Screenshot 2024-09-18 at 11.30.03 AM.png
The following parameters are available in the summarize_text function. All of the parameters are optional except input_str.
def summarize(input_str: str,
       prompt_template: Optional[PromptTemplate] = None,
       parameters: Optional[dict[str, str]] = None,
       model: Optional[str] = None,
       model_configuration: Optional[dict[str, object]] = None,
       system: Optional[str] = None,
       chunking_configuration: Optional[ChunkingConfiguration] = None,
       output_style: Optional[SummarizationOutputStyle] = None,
       output_word_length: Optional[SizeBoundary] = None):
  """
  Summarize text

  Parameters:
      input_str (str): Text information to be summarized. This attribute is mandatory.
      prompt_template (PromptTemplate): prompt template
      parameters (dict): A dictionary containing parameter-name and its corresponding value.
        It's used for replacing the placeholders in the PromptTemplate.
      model (str): Name/id of the language model to be used for summarization
      model_configuration (dict): A dictionary with custom configuration parameters for a selected language model.
      system (str): Optional override for the default system instructions included with the prompt to the model.
      chunking_configuration (ChunkingConfiguration): Configuration for dividing the given text into smaller parts or chunks.
      output_style (SummarizationOutputStyle): Determines the design, structuring and organization of the summarization's output.
      output_word_length (SizeBoundary): Defines a size boundary to limit the length of the output summary, based on number of words.

  Returns:
    response: summarized text
  """
