When you create an App Studio app, the first task is to choose a theme. Themes determine how your app displays to users, including elements like the following:

• Fonts
• Colors
• Card and table styling
• Tabs
• Rounded corners

Themes are divided into two types: app themes and custom themes. This article covers choosing and editing themes, as well as how to copy and reuse themes between App Studio apps.

---

CHOOSE A THEME

• App themes
• Custom themes
  • Save a custom theme

EDIT A THEME Edit your theme

• Change theme
• Edit current theme
  • Configure defaults
  • Style layout (navigation and tabs)
  • Edit app layout
  • Style cards
  • Style tables
  • Style buttons
  • Style text components
  • Style fonts
  • Style forms
  • Choose colors
    • Set app background color
    • Theme color palette/Chart color palettes
    • Color picker

REUSE A THEME

• Copy a custom theme
  • Download a custom theme from the Apps Home
  • Download a custom theme from inside an app
  • Upload a custom theme to a new app — JSON file
  • Import a custom theme from an existing app

---

​

App Themes

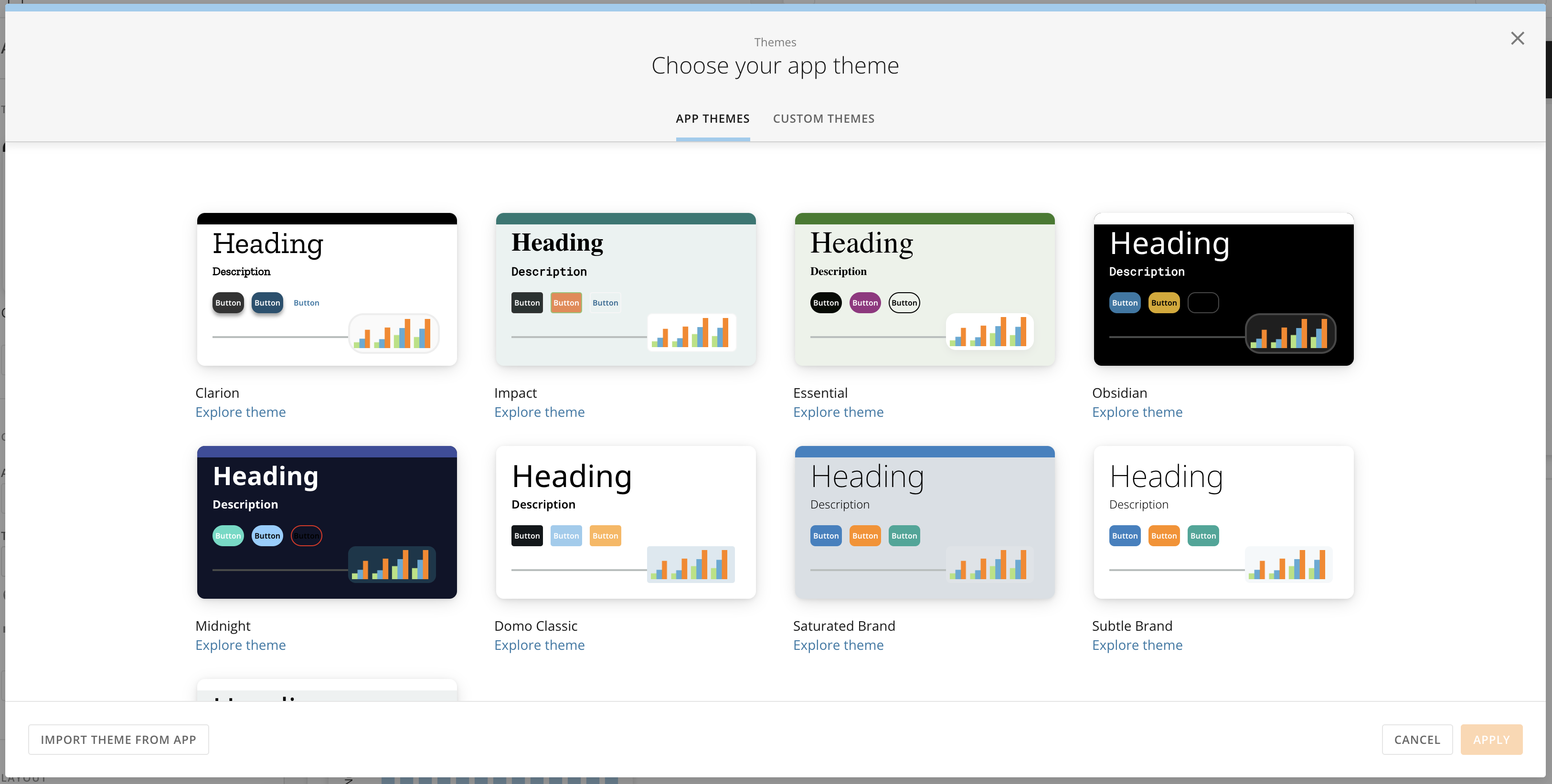

App Studio comes with several pre-built packages that include fonts, colors, and styles—these packages are called app themes. They display in the first tab of the themes modal and have names like Essential and Saturated Brand. Either select a theme tile > Apply to apply the theme to your app and open the app editor or select Explore theme to learn more about a certain theme. When you explore a theme, you can see more samples from the package. Select Use This Theme to apply it to your app and open the app editor. You can edit a theme or switch to another theme at any time.

​

Custom Themes

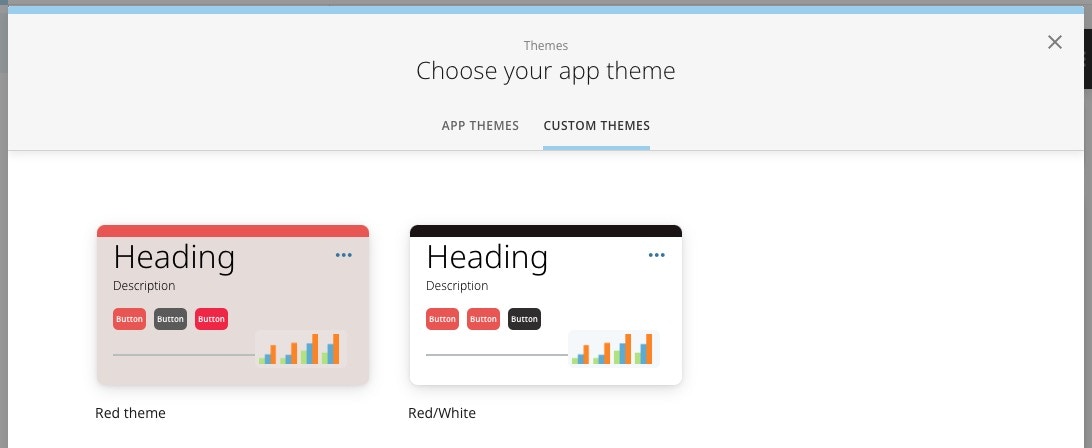

The other tab in the themes modal is Custom Themes.

​

When you first use App Studio, there are no custom themes available. You can create custom themes by choosing a pre-built app theme, making changes to it, and saving it as a custom theme. Your custom themes display in the Custom Themes tab of the themes modal for that app. You can reuse a custom theme in another app. After you create at least one custom theme, you can duplicate it, edit it, and save it as another custom theme.

​

Save a Custom Theme

These steps describe how to save a theme to your Custom Themes after you have made changes to an app theme or another custom theme.

1. After making changes to a theme in the app editor, go to App theme.

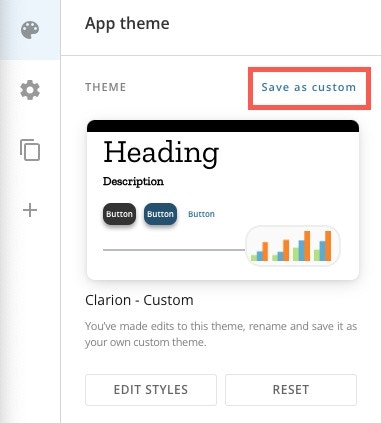

2. Under Theme, select Save as custom. Note: This option doesn’t display until you make changes to the theme.

3. Name your new Custom Theme and save. The max character length is 30.


Your new theme now displays in the Custom Themes tab of the themes modal.

​

Edit Your Theme

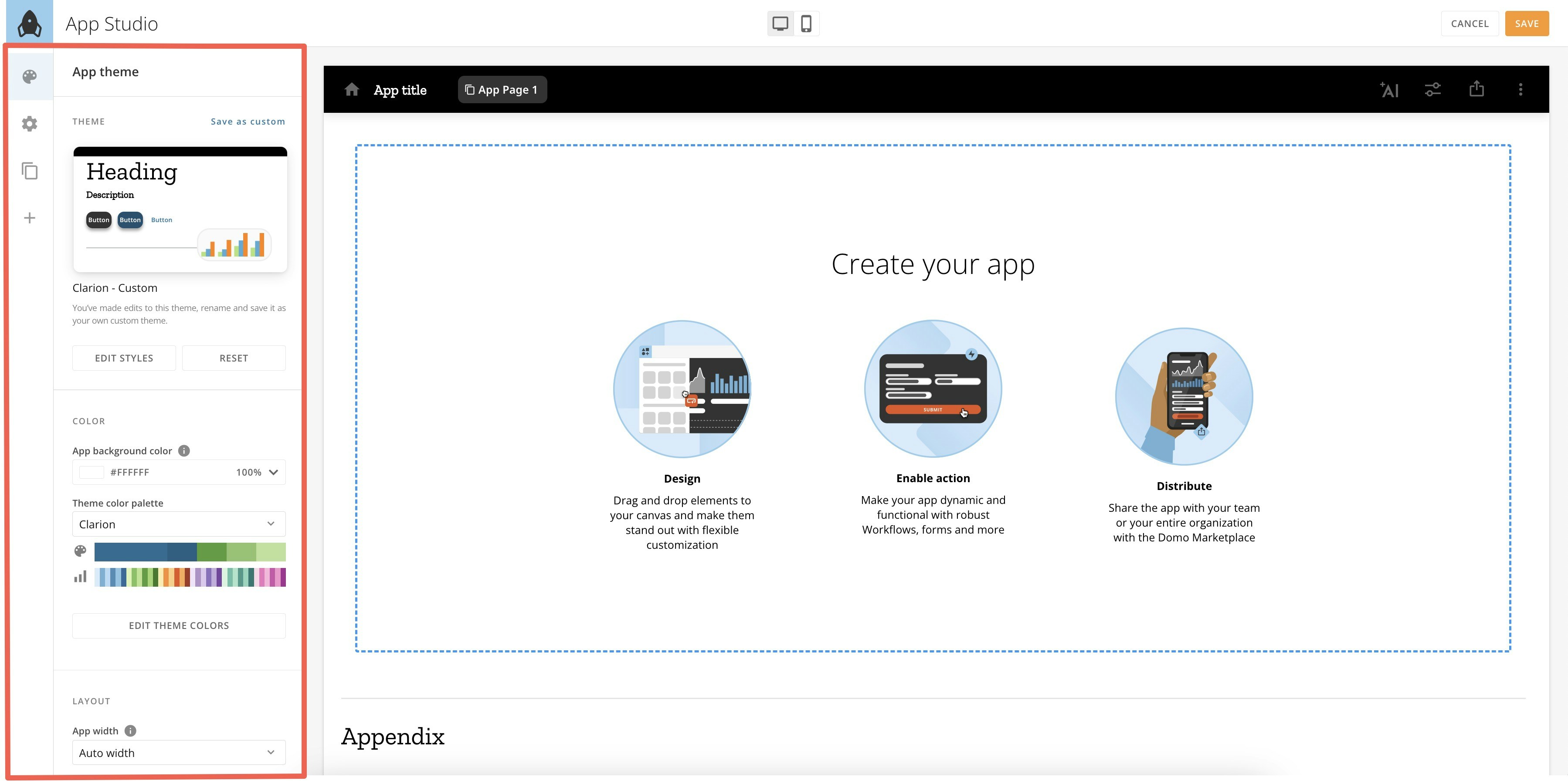

When you open the app editor, the App theme area of the left navigation is open by default. In this area, you can preview a thumbnail of the preview and choose a different theme, edit the current theme, and set defaults for new app elements.

​

Change Theme

In the App theme area, hover over the preview thumbnail and select Change Theme. This opens the themes modal. Choose whether to use an app theme or a custom theme. If you instead want to use a custom theme from another app, learn how to copy and reuse themes.

​

Edit Current Theme

To edit your current theme, navigate to the App theme area and select Edit Styles below the preview thumbnail. The Theme styles interface has two tabs: Styles and Defaults. In the Styles tab, make style choices for app layout, cards, buttons, and more. For a full list, see this article’s.

​

Configure Defaults

The Defaults tab (App theme > Edit Styles > Defaults [tab]) lets you choose how the following elements appear as you add them to the app. You can always edit the elements after adding them.

• App navigation
• Tabs
• Cards (single value, charts, controls, images, and documents)
• Tables
• Buttons
• Header
• Text headers and boxes
• Fonts
• Forms

​

Style Layout

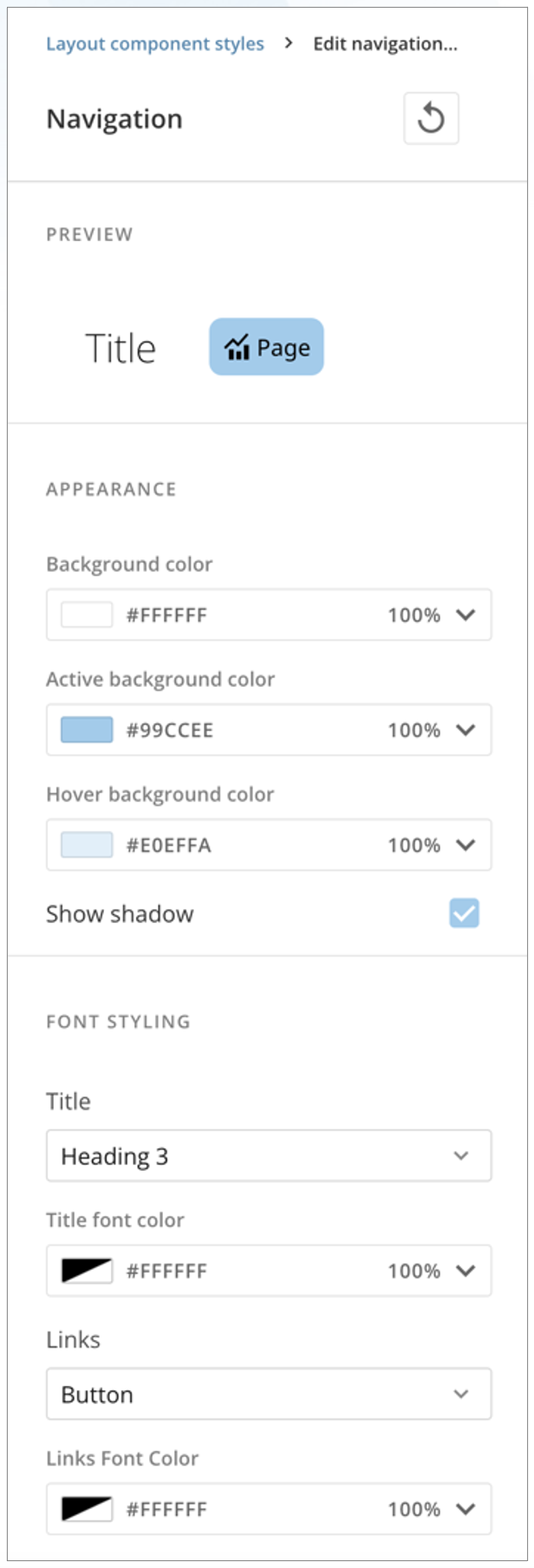

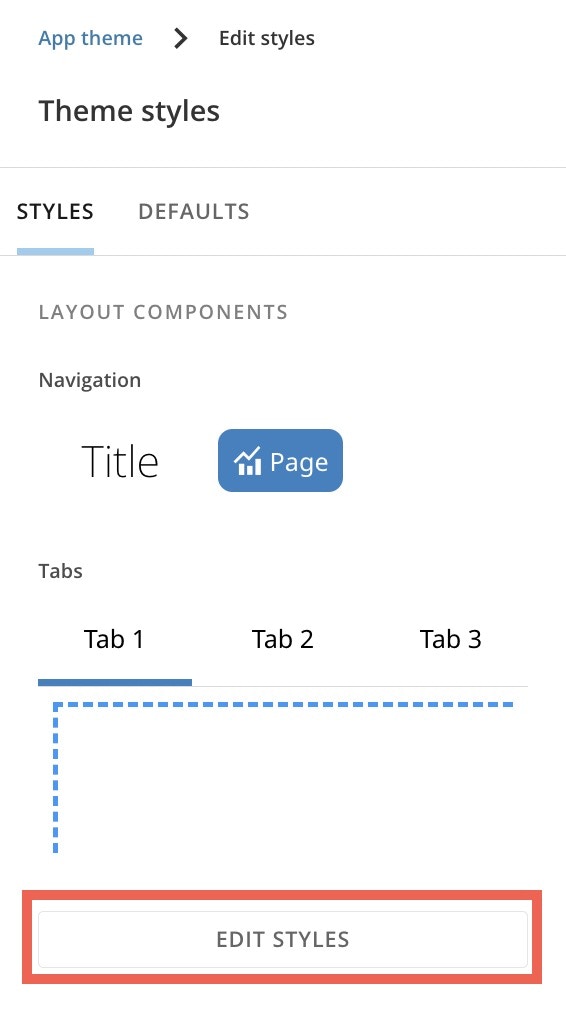

Layout settings determine the style of the app’s main navigation and tabs. Under App theme > Edit Styles > Styles (tab) > Layout Components, s elect Edit Styles to make changes. In the style editor, you can select Edit for each element. For each element, make choices about color, font, links, and more. (Learn about color in App Studio.) Checking the box for Show shadow includes a subtle shadow with the element. Select Reset at the top of the panel at any time to reset all settings to their default values.

Edit App Layout

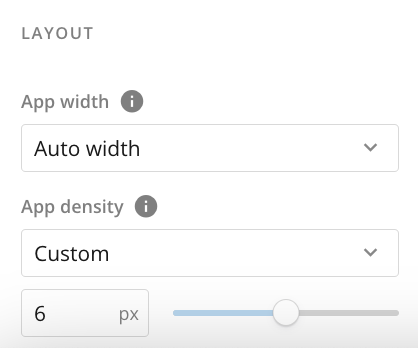

Under App theme > Layout, you can change the following settings for the entire app:

• App width — App width changes the way all app pages fill space across different screen sizes. You can choose to use auto width or fixed width.
  • Auto width — Margins are fixed and the page flexibly fits the screen.
  • Fixed width — Page width is fixed and margins are flexible to fit screen.
• App density — App density determines the space between objects in the app. The options are default (4 px), comfortable (8 px), compact (2 px), nil (0 px), and custom.

​

Style Cards

You can customize up to eight different card styles to match your app’s branding when you bring cards into the app. Under App theme > Edit Styles > Styles (tab) > Cards, select Edit Styles. In the panel, s elect Edit to customize each card style individually. (Learn about color in App Studio.) Select Reset at the top of the panel at any time to reset all settings to their default values.

​

Style Tables

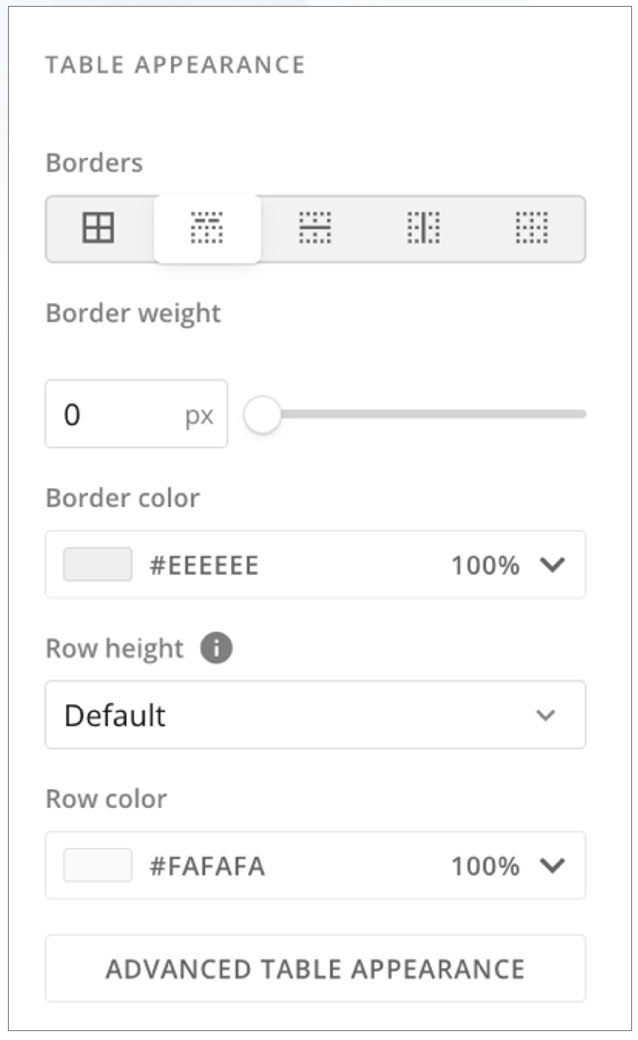

You can customize up to three different table styles. Under App theme > Edit Styles > Styles (tab) > Tables, select Edit Styles. In the panel, s elect Edit to customize each table style individually. Learn about color and spacing controls in App Studio.) Select Reset at the top of the panel at any time to reset all settings to their default values. Controls for Table Appearance allow you to select the borders affected by your changes. (The options are all table borders, the border below the header, all horizontal borders, all vertical borders, or to remove table borders.) After selecting which borders to customize, you can choose

• Border weight (0–4 pixels)
• Border color**
• Row height (default, comfortable, or compact)
• Row color**

Selecting Advanced Table Appearance allows you to customize the following:

• Toggle alternating row color
• Configure alternating row color
• Choose a separate font for column headers
• Header font color
• Header background color
• Total row font
• Total row font color
• Total row background color
• Subtotal row font
• Subtotal row font color
• Subtotal row background color
• URL font color

​

Style Buttons

You can customize five different button styles. Under App theme > Edit Styles > Styles (tab) > Buttons, select Edit Styles. In the panel, s elect Edit to customize each button style individually. (Learn about color in App Studio.) Select Reset at the top of the panel at any time to reset all settings to their default values.

​

Style Text Components

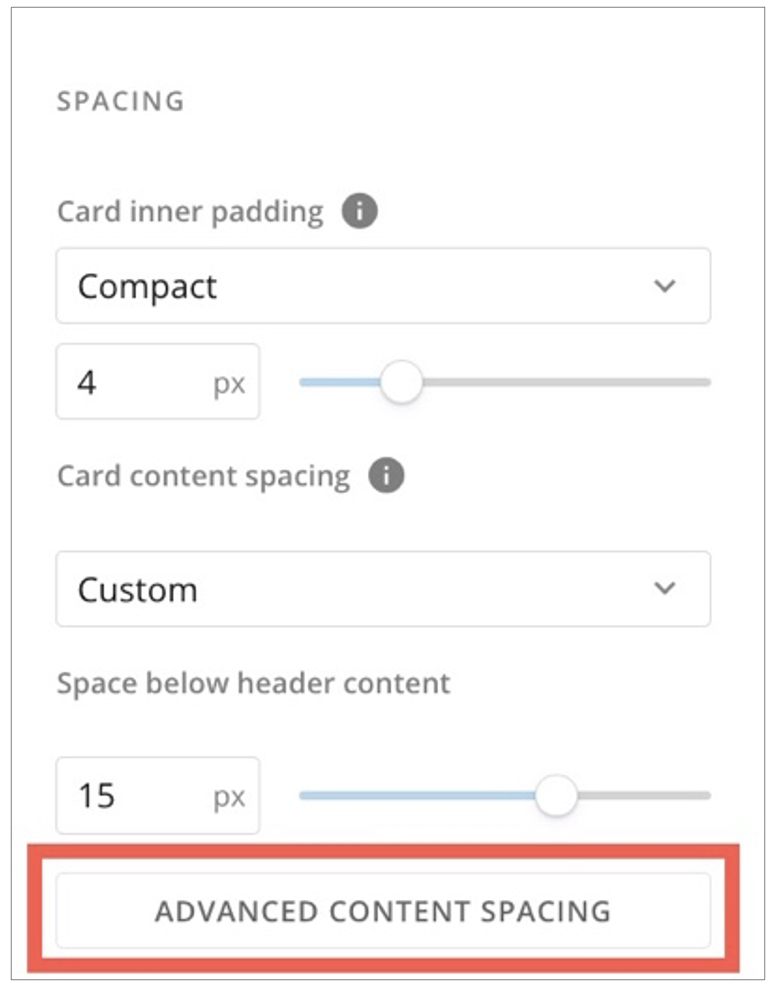

This section allows you to configure two header styles and three card styles. Header styles include only font and color. Card styles have more options, including spacing. (Learn about color in App Studio.) Under App theme > Edit Styles > Styles (tab) > Text Components, select Edit Styles.

​

Style Fonts

You can customize five different heading styles and one style each for body, paragraph, and buttons. Under App theme > Edit Styles > Styles (tab) > Font Styles, select Edit Styles. Selecting Edit for any of the styles allows you to choose a font family (condensed, monospace, sans, serif, or slab), font weight, font size, and whether to italicize.

​

Style Forms

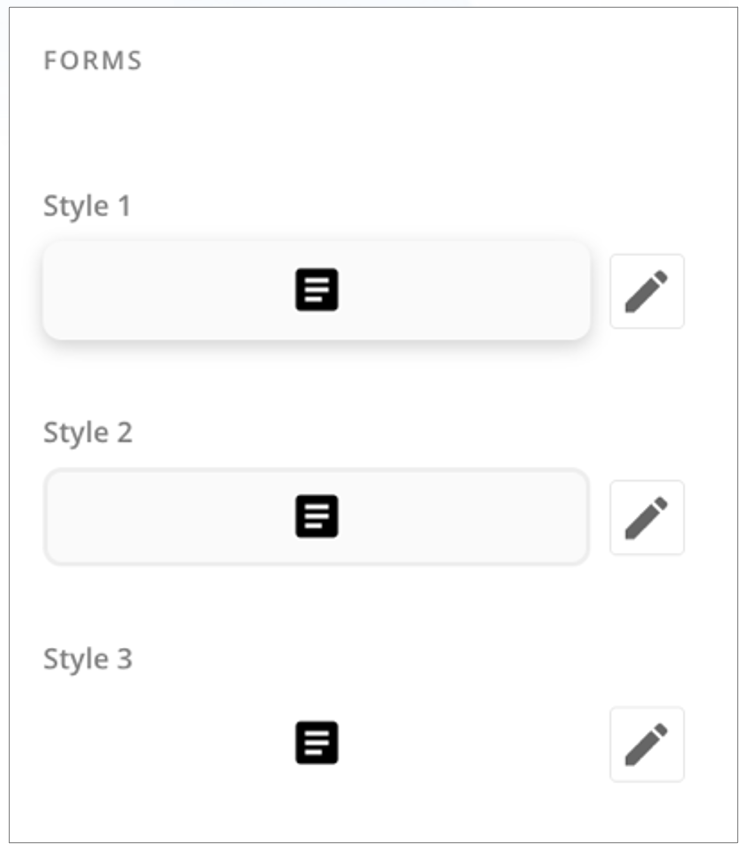

You can customize three styles for forms. Under App theme > Edit Styles > Styles (tab) > App Components, select Edit Styles. Selecting Edit for any style displays a preview of form appearance, card appearance, padding, and font style controls. Form Appearance controls allow you to customize the following:

• Form primary button — Allows you to choose one of the available button styles.
• Form secondary button — Allows you to choose one of the available button styles.
• Form controls color and opacity — The color is applied to form input field controls, including checkboxes and radio selections.

Padding controls allow you to customize the inner padding of a card (default, comfortable, compact, micro, or custom). This adjusts the space between the edge of the card and its content.

​

Choose Colors

Under App theme > Color, you can choose an app background color and choose a pre-built color palette. The pre-built color palettes include a set of theme colors and a set of chart colors. If you would rather create your own palette, select Edit Theme Colors.

Set App Background Color

The app background color allows you to set a color fill or an image fill.

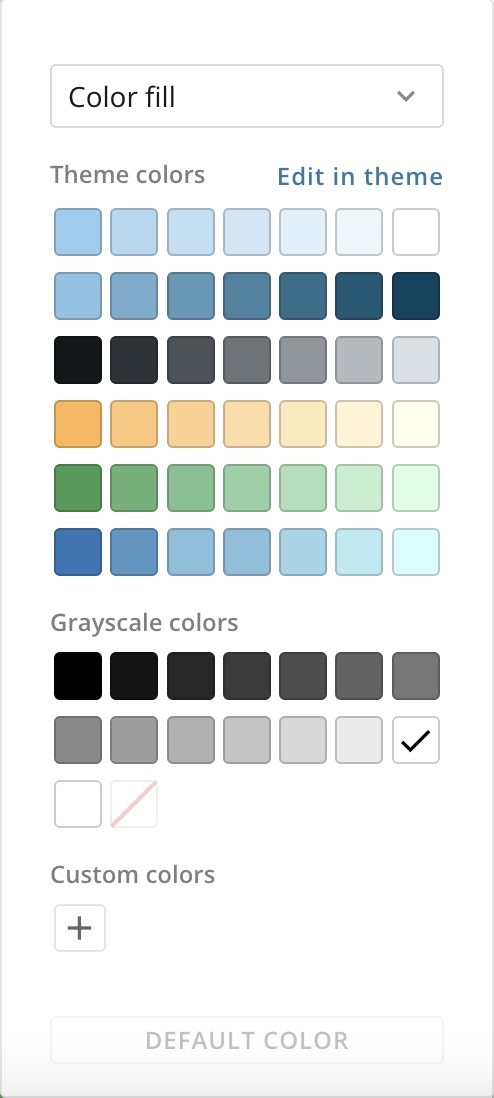

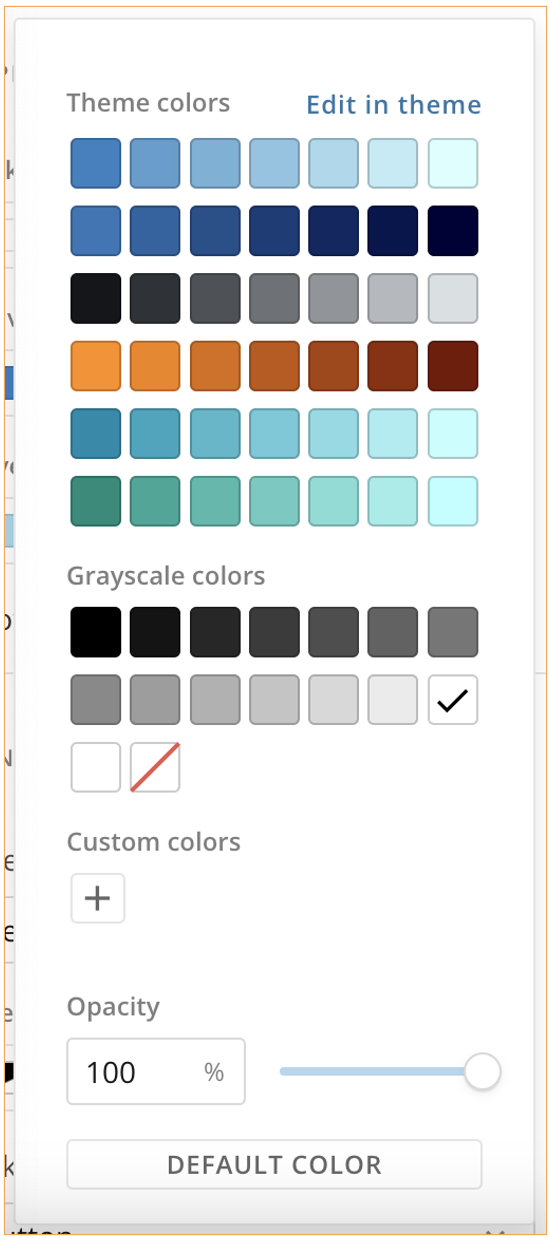

• Color Fill — See Color Picker. Selecting Edit in theme expands the Theme Colors/Chart Colors palettes.
• Image Fill — The image fill allows you to choose an image from your machine to use as the background.

You can also select Default Color to fill the background with white (HEX: FFFFFF).

Theme Color Palette/Chart Color Palettes

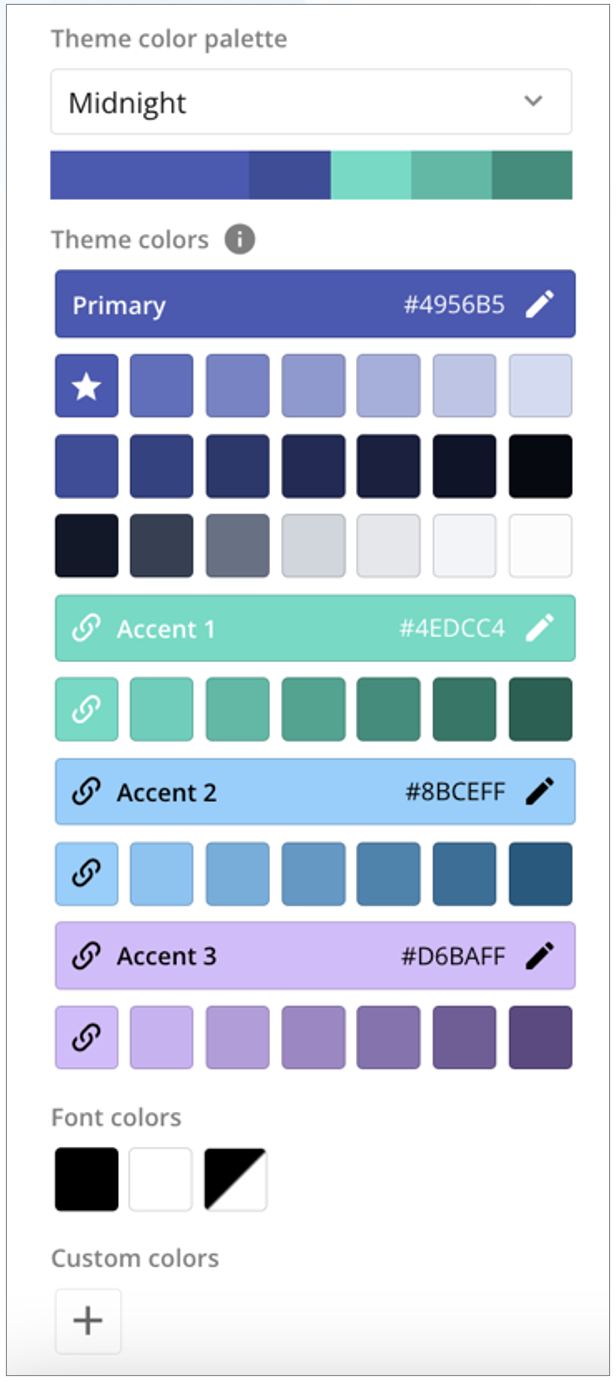

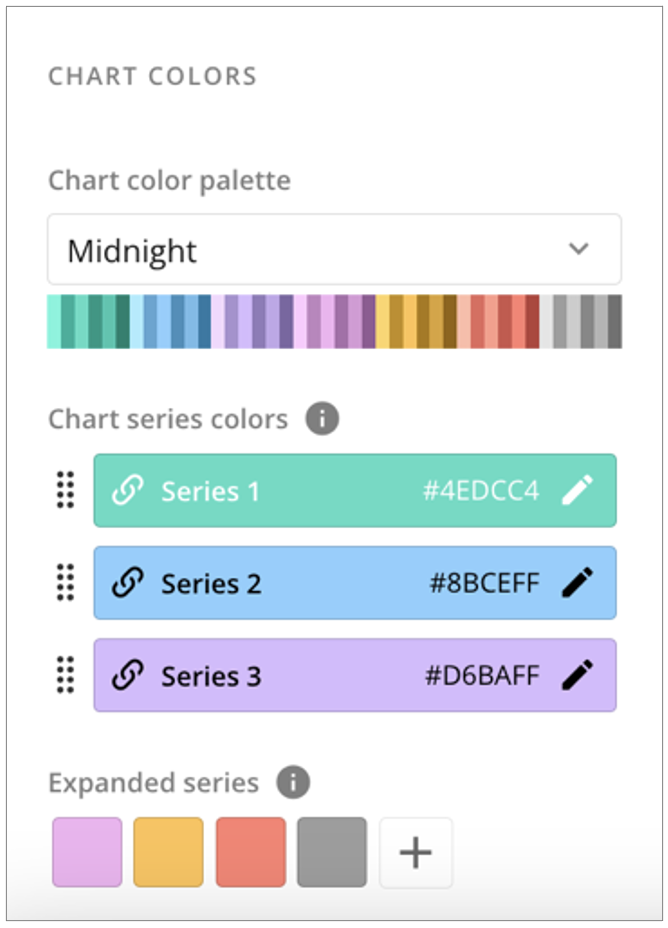

Under App Theme > Color, selecting Edit Theme Colors displays the Theme Colors and Chart Colors palettes. The Theme color palette dropdown contains eight pre-built color palettes. Each color palette contains a primary color and three accent colors, with a predefined gradient for each color. All colors are editable; however, the three base accent colors are used in charting, and any changes to them affect the way charts display. You can change any of the color palettes to your brand colors to personalize your app. Editing any of the included colors or selecting Add under Custom colors opens the color picker. Editing an included accent color displays suggestions for accent colors based on the primary color. You can choose to use black or white font throughout the app or choose Automatic, which changes the font based on the background color behind it. The Chart color palette dropdown contains 11 pre-built color palettes for charting. The chart color palette determines what colors appear and in what order for bar, line, or pie charts, depending on the number of series in those charts. Each color palette comes with colors for three series. If you need more than three series colors, you can manage these under Expanded series.

Expanded Series

The Expanded series of chart colors is used as the number of series in charts increases, or in some cases on line charts. You can add to and edit colors in the expanded series. Selecting Add under Expanded series displays a specialized color picker with colors from the chosen theme. Reorder the series colors by dragging the handles of the colors into the order you want.

​

Copy a Custom Theme

Unless an app is locked, app owners and editors can choose to reuse a custom theme created in another App Studio app to preserve your branding. They can also download a custom theme as a JSON file for future use. If an app is locked, only owners can copy and reuse themes. To copy or reuse a custom theme, you must complete two processes: downloading and uploading. These processes are described below, depending on whether you download from the Apps Home or inside the app and whether you upload to a new app or to an existing app.

​

Download a Custom Theme From the Apps Home

1. Navigate to the Apps Home and find the app with the custom theme you want to download.
2. Hover over the app and select More (vertical three-dot menu) > Download theme file. This downloads a JSON file of the custom theme being used in the app with all the current customizations. If you want to use an older theme with different customizations, see downloading a custom theme from inside an app.


​

Download a Custom Theme From Inside an App

1. From inside the app editor, go to App theme, hover over the preview thumbnail and select Change Theme to open the themes modal.

2. Go to the Custom Themes tab of the modal and select Download theme for the theme you want to download. The custom theme’s JSON file downloads to your machine.


​

Upload a Custom Theme to a New App — JSON File

To reuse a custom theme in a different app, you must first create the new app so that it displays in the Apps Home.

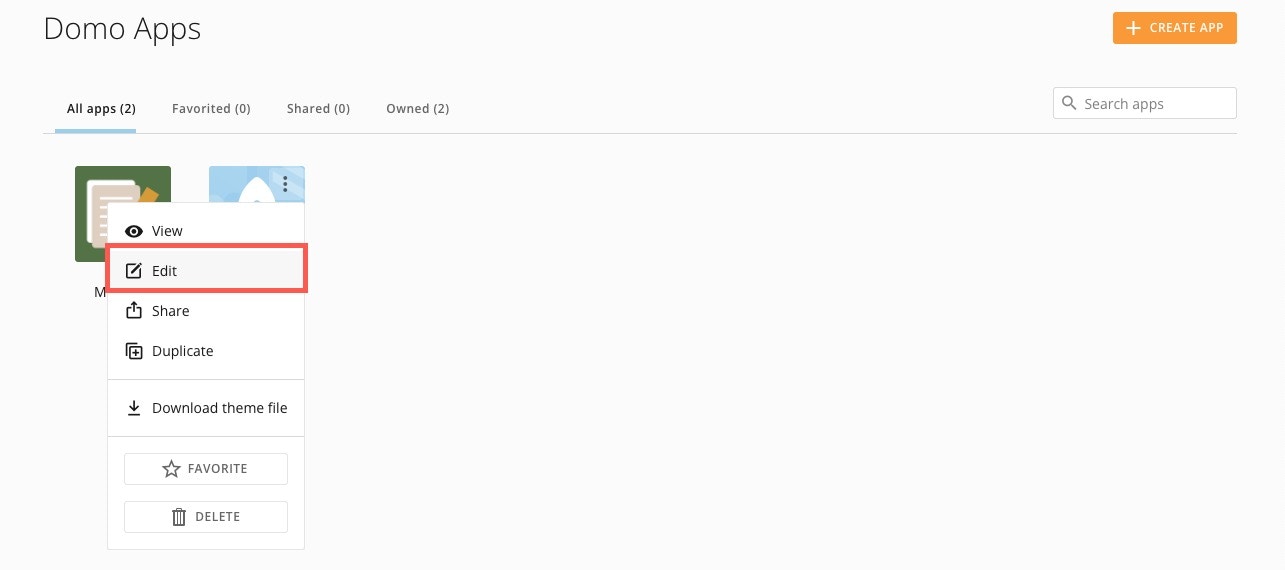

1. Navigate to the Apps Home and find the app from which you want to reuse the custom theme.
2. Hover over the app and select More (vertical three-dot menu) > Edit. The app editor opens.

3. In the left navigation under App theme, hover over the preview thumbnail and select Change Theme to open the themes modal.

4. Go to the Custom Themes tab of the modal and select Upload Custom Theme.

5. Choose your downloaded JSON file. After your theme uploads successfully, it displays in the Custom Themes tab of the modal.
   Important: The theme file must be less than 150 KB. If the file is too large, you’ll receive an error.
6. Select the theme thumbnail and then Apply to bring the uploaded theme into your app.
7. Select Save in the app editor to ensure your theme changes are complete.

​

Import a Custom Theme From an Existing App

1. Open the app editor for the app to which you want to apply a custom theme.
2. In the left navigation under App theme, hover over the preview thumbnail and select Change Theme to open the themes modal.
3. In the App Themes tab, select Import Theme From App.

4. Search for and select the app with the custom theme you want to apply. Select Import Theme.

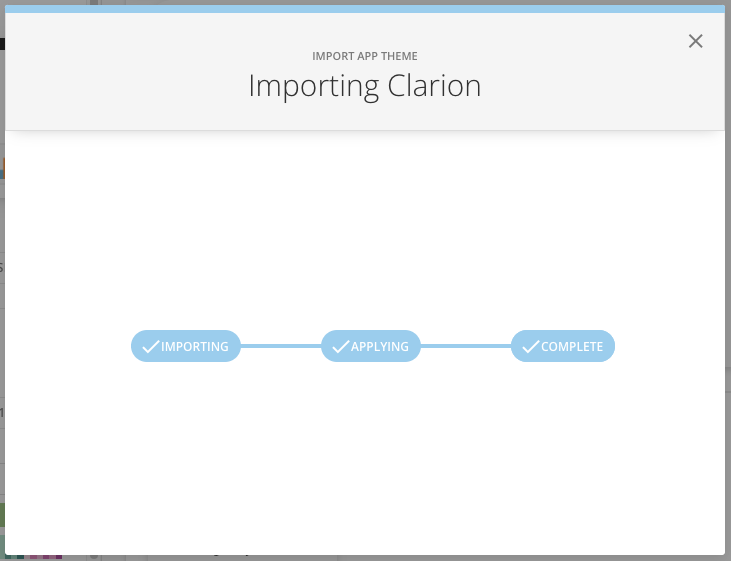

5. The modal displays the three steps—importing, applying, and complete. When the import is complete, close the modal.

6. Select Save in the app editor to ensure your theme changes are complete.
