Reference - Domo

These methods are provided by Domo in the Connector Dev Studio to make it easier for you to build your custom connector.

Auth

These methods are specifically used in the authentication code block.

Method	Parameters	Return	Description
auth.authenticationSuccess()	none	none	Set during the authentication process to indicate that the credentials have been successfully validated.
auth.authenticationFailed(errorMessage)	errorMessage	none	Set during the authentication process to indicate that the credentials could not be validated.

Datagrid

Domo provides methods and constants to help you insert your data into Domo. These methods and constants are specifically used in the data processing code block. These constants are used to define the data type of a column in a datagrid.


Name	Description
datagrid.DATA_TYPE_STRING	Set a column dataType to receive a string.
datagrid.DATA_TYPE_DOUBLE	Set a column dataType to receive a number.
datagrid.DATA_TYPE_DATETIME	Set a column dataType to receive a date/time. Dates inserted into the table need to be formatted yyyy-MM-dd’T’HH:mm:ss.
datagrid.DATA_TYPE_DATE	Set a column dataType to receive a date. Dates inserted into the table need to be formatted yyyy-MM-dd.

These methods are used when storing data from your API endpoint in Domo.


Method	Parameters	Return	Description
datagrid.addColumn(columnName, dataType)	columnName, dataType	none	Adds a column to a table. Defines the data type used by the column.
datagrid.addCell(cellData)	cellData	none	Adds data to one cell in the table. Columns must be defined first.
datagrid.endRow()	none	none	Indicates a row of data is complete and a new row in the table needs to be started.
datagrid.error(code, errorMessage)	code, errorMessage	none	Ends the processing of data and returns an error message to the user.
datagrid.magicParseCSV(csvString)	csvString	none	Populates the entire datagrid when passed a properly formatted string of comma-separated values.
datagrid.magicParseJSON(jsonString)	jsonString	none	Populates the entire datagrid when passed a string representation of properly formatted JSON.
datagrid.magicParseXML(xmlString)	xmlString	none	Populates the entire datagrid when passed a string representation of properly formatted XML.

Discovery

If you are using the Discovery option in Advanced Mode in the Configure Reports step, Domo provides methods and constants to help you. These methods and constants are specifically used in the discovery code block. This constant is used when building a discovery tree menu.


Name	Description
discovery.tree	Used with a discovery tree. This references the root node in a discovery tree.

These methods are used when building a discovery tree or discovery dropdown.


Method	Parameters	Return	Description
discovery.addOption(optionValue)	optionValue	none	Used with a discovery dropdown. Adds an option to the dropdown menu.
discovery.addOption(optionName,optionValue)	optionName, optionValue	none	Used with a discovery dropdown. Adds an option to the dropdown menu. Option name appears as label, option value is used in the code.
discovery.addNode(parentNode, nodeName)	parentNode, nodeName	createdNode	Used with a discovery tree. Creates a new child node within the node that is passed as a parameter. Returns a reference to the newly created node.
discovery.addLeaf(parentNode, leafName)	parentNode, leafName	none	Used with a discovery tree. Creates a new child leaf within the node that is passed as a parameter.
discovery.publishTree()	none	none	Used with a discovery tree. This method indicates that you have finished constructing a discovery tree.

Domo

These methods may be useful in any code block.


Method	Parameters	Return	Description
DOMO.log(value)	value	none	Prints to the Dev Studio console. Make sure you remove any credentials that you are logging for testing before you submit your connector.
DOMO.sleep(milliseconds)	milliseconds	none	Can be used to space out HTTP requests.
DOMO.getState(key)	key	value	Returns the value of the requested state.
DOMO.setState(key, value)	key, value	none	Can be used to set a state value which can be returned using DOMO.getState(key).
DOMO.parseXML(xmlString)	xmlString	jsonObject	Used to convert XML to JSON for easier parsing.
DOMO.getStartDate(metadata.parameters[“Date”])	Date	date	Used to set the start date.
DOMO.getEndDate(metadata.parameters[“Date”])	Date	date	Used to set the end date.


Encoding Method	Parameters	Return	Description
DOMO.b64EncodeUnicode(stringToEncode)	stringToEncode	encodedString	Encodes a string using base64 encoding.
DOMO.b64DecodeUnicode(stringToDecode)	stringToDecode	decodedString	Decodes a string using base64 decoding.
DOMO.hmacSHA1(stringToEncode, key)	stringToEncode, key	encodedString	Encodes a string using the provided key to create a hmac-SHA1 hash.

| DOMO.hmacSHA256(stringToEncode, key) | stringToEncode, key | encodedString | Encodes a string using the provided key to create a hmac-SHA256 hash. | | DOMO.md5(stringToEncode) | stringToEncode | encodedString | Encodes a string using the md5 algorithm. | | DOMO.getJWT() | none | tokenString | Creates a JSON web token (JWT) using the assigned algorithm signed with the provided key. Note: You must set the algorithm, key, issuer, subject, expiration, and other claims. See the provided code example. Supported algorithms: HS256, RS256, ES256 |

HTTP Request

When making your HTTP requests, use the following methods to add headers and parameters, and to make HTTP calls. Note: All URLs must use https.


Method	Parameters	Return	Description
httprequest.addHeader(key, value)	key, value	none	Add a header to your HTTP request. This is how you can add an Authorization header or any other header you need to your HTTP request. Add headers and parameters before you make the HTTP request.
httprequest.addParameter(key, value)	key, value	none	Add a parameter to a base URL. Add headers and parameters before you make the HTTP request.
httprequest.clearParameters()	none	none	Remove any parameters you have added to an HTTP request object.
httprequest.clearHeaders()	none	none	Remove any headers you have added to an HTTP request object.
httprequest.getHeader(key)	key	headerValue	Get a string containing a particular header’s value from your HTTP request. If you have added headers using the httprequest.addHeader method, you can use this method to retrieve that value.
httprequest.getResponseHeader(key)	key	headerValue	Get the string containing a particular header’s value from your HTTP response. If there are multiple response headers with the same name, then their values are returned as a single concatenated string, where each value is separated by a pair of comma and space.
httprequest.getStatusCode()	none	responseCode	Get the HTTP response code from your HTTP request. After you make a httprequest.get, httprequest.post, or httprequest.post call, the HTTP response will have a number code. Usually 200 is used if the request has succeeded. For more information, see here.
httprequest.get(url)	url	responseString	Make an HTTP GET request. Any headers or parameters added before making the request will be included by Domo when making the get request. All URLs must use https.
httprequest.post(url)	url	responseString	Make an HTTP POST request without any request body. Any headers or parameters added before making the request will be included by Domo when making the post request. All URLs must use https.
httprequest.post(url, bodyString)	url, bodyString	responseString	Make an HTTP POST request with a request body. Any headers or parameters added before making the request will be included by Domo when making the post request. All URLs must use https.
httprequest.put(url, bodyString)	url, bodyString	responseString	Make an HTTP PUT request with a request body. Any headers or parameters added before making the request will be included by Domo when making the put request. All URLs must use https.

Metadata

Information you may need to run your connector will be stored in a metadata JavaScript object. Access data from the metadata object in the same way you would access data from any JavaScript object.

Metadata object structure

{
   "account":{
      "username": <<null or data from authentication>>,
      "password": <<null or data from authentication>>,
      "apikey": <<null or data from authentication>>,
      "clientKey": <<null or data from authentication>>,
      "clientSecret": <<null or data from authentication>>,
      "authorizationURL": <<null or data from authentication>>,
      "accessTokenURL": <<null or data from authentication>>,
      "scope": <<null or data from authentication>>,
      "additionalParameters": <<null or data from authentication>>,
      "accesstokenMethod": <<null or data from authentication>>,
      "tokenAddlParams": <<null or data from authentication>>,
      "accesstoken": <<null or data from authentication>>,
      "code": <<null or data from authentication>>
   },
   "report":<<name of selected report>>,
   "days":1,
   "parameters":{
      <<key/value pairs
        key = parameter name
        value = selected parameter value (or array of values)>>
   },
   "discovery":{


   },
   "baseurl":"https://api.domo.com"
}

Metadata access examples

//Access accessToken in the account object.
var token = metadata.account.accesstoken;

//Access a parameter named "Region in United States"
//This will return an array of strings if the parameter type is a discovery tree. This will return a string if it's any other parameter type.
var region = metadata.parameter['Region in United States'];

SQL

These SQL methods are used in the data processing code block. They are specifically used in the cases that require the state to be saved between runs.


Method	Parameters	Return	Description
sql.createTable(tableName, schema, (optional) addIfNotExists)	(tableName, schema, (optional) addIfNotExists)	none	Create a table and define its columns
sql.select(columns, from, (optional) where, (optional) useDistinct)	(columns, from, (optional) where, (optional) useDistinct)	jsonArray	Return columns from database table
sql.update(tableName, values, (optional) where)	(tableName, values, (optional) where)	none	Update values in a database table
sql.insert(table, values)	(table, values)	none	Insert values in a database table
sql.delete(tableName, (optional) where)	(tableName, (optional) where)	none	Delete values in a database table
sql.export()	none	none	Export the current state of the database

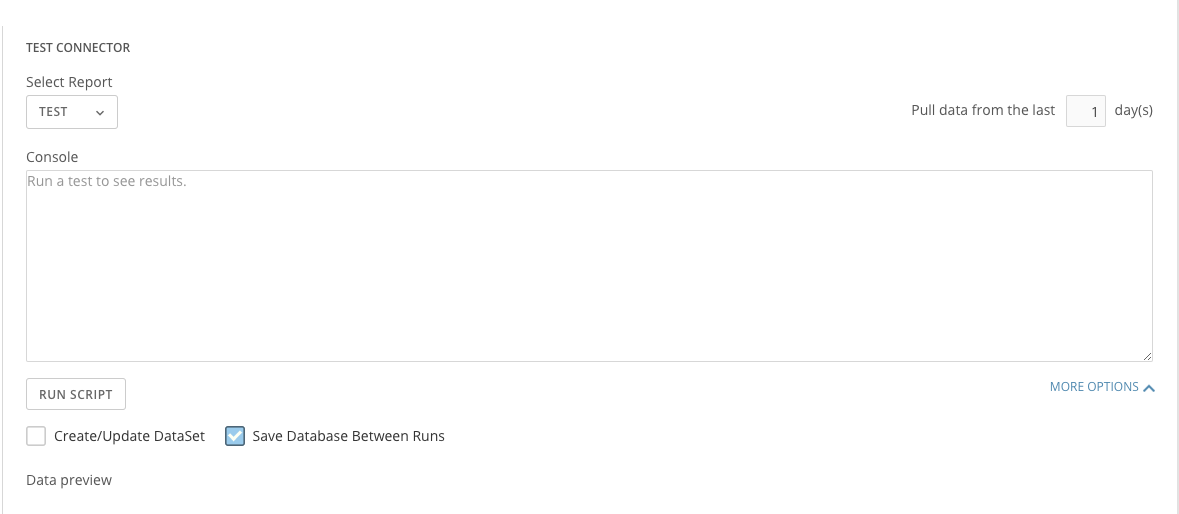

To store the state of the database between runs, the ‘Save Database Between Runs’ checkbox must be checked.

AWS

These AWS methods are used specifically to create S3 AWS client, to put the content under the specified name at the defined path, and to get the content of the specified file at the defined path.


Method	Parameters	Return	Description
aws.createClient(region, key, secret)	(region, key, secret)	none	Creates an AWS S3 client
aws.put(path, name, value)	(path, name, value)	none	Puts the value content under the specified name at the defined path
aws.get(path, name)	(path, name)	String	Gets the content of the named file at the defined path

Examples

aws.createClient(metadata.account.region, metadata.account.key, metadata.account.secret)

aws.put("project/documents", "test.json", '{"hello": "world"}')

var res = aws.get("project/documents", "test.json");

Method Details

Auth Methods

These methods are specifically used in the authentication code block.

auth.authenticationSuccess()

Set during the authentication process to indicate that the credentials have been successfully validated.

Parameters:

None

Returns:

None

Example:

if(httprequest.getStatusCode() == 200){

auth.authenticationSuccess();

} else {

auth.authenticationFailed('Your username and password are incorrect');

}

auth.authenticationFailed(errorMessage)

Set during the authentication process to indicate that the credentials could not be validated.

Parameters:

errorMessage: Message indicating why the authentication failed.

Returns:

None

Example:

if(httprequest.getStatusCode() == 200){
  auth.authenticationSuccess();
} else {
  auth.authenticationFailed('Error connecting to earthquake.usgs.gov');
}

Datagrid Constants

These constants are specifically used in the data processing code block to define the type of your data in each of your datagrid columns.

datagrid.DATA_TYPE_STRING

Set a column dataType to receive a string. Example:

datagrid.addColumn(‘Account ID’, datagrid.DATA_TYPE_STRING);

datagrid.DATA_TYPE_DOUBLE

Set a column dataType to receive a number. Example:

datagrid.addColumn(‘Amount’, datagrid.DATA_TYPE_DOUBLE);

datagrid.DATA_TYPE_DATETIME

Set a column dataType to receive a string. Dates inserted into the table need to be formatted yyyy-MM-dd’T’HH:mm:ss. Example:

datagrid.addColumn(‘Date Created’, datagrid.DATA_TYPE_DATETIME);

datagrid.DATA_TYPE_DATE

Set a column dataType to receive a string. Dates inserted into the table need to be formatted yyyy-MM-dd Example:

datagrid.addColumn(‘Date Created’, datagrid.DATA_TYPE_DATE);

Datagrid Methods

These methods are specifically used in the data processing code block to insert your data into Domo.

datagrid.addColumn(columnName, dataType)

Adds a column to a table. Defines the data type used by the column.

Parameters:

columnName: The column name that the user will see when they look at the table.
dataType: The Domo data type. It may be datagrid.DATA_TYPE_STRING, datagrid.DATA_TYPE_DOUBLE, datagrid.DATA_TYPE_DATETIME, or datagrid.DATA_TYPE_DATE.

Returns:

None

Example:

datagrid.addColumn(‘Name’, datagrid.DATA_TYPE_STRING);

datagrid.addCell(cellData)

Adds data to one cell in the table. Columns must be defined first.

Parameters:

cellData: The datum to be inserted into this table cell. The type of the data should match the type in the column.

Returns:

None

Example:

datagrid.addCell(‘Jane Jones’);

datagrid.endRow()

Indicates a row of data is complete and a new row in the table needs to be started.

Parameters:

None

Returns:

None

Example:

datagrid.addColumn('Name', datagrid.DATA_TYPE_STRING);
datagrid.addColumn('Birthday', datagrid.DATA_TYPE_DATE);


datagrid.addCell('Jane Jones');
datagrid.addCell('2017-10-25');
datagrid.endRow();

datagrid.error(code, errorMessage)

Ends the processing of data and returns an error message to the user.

Parameters:

code: A integer code you would like to use to define the error.
errorMessage: An error message that will be returned to the user.

Returns:

None

Example:

datagrid.error(0, metadata.report + ‘ is not a supported report.’);

datagrid.magicParseCSV(csvString)

Populates the entire datagrid when passed a properly formatted string of comma-separated values. The magicParse automatically determines type, and leaves any undetermined types as strings.

Parameters:

csvString: A string containing a comma-separated values. The first line should contain the comma-separated column names.

Returns:

None

Example:

var res = `Name,Birthday,Department
"Jane Jones",1981-03-04,"Engineering"
"Peter Paul",1975-08-09,"Marketing"`;

datagrid.magicParseCSV(res);

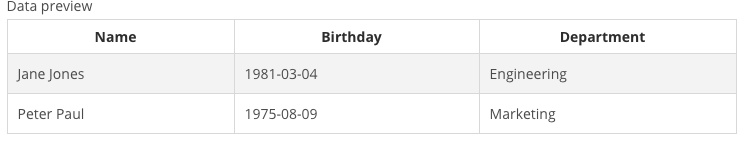

Result:

datagrid.magicParseJSON(jsonString)

Populates the entire datagrid when passed a string representation of properly formatted JSON. The magicParse automatically determines type, and leaves any undetermined types as strings.

Parameters:

jsonString: A string representation of a properly formatted JSON. The magicParseJSON method only works for JSON table data presented in key/value pairs.

Returns:

None

Example:

var res = `[{
  "Name": "Jane Jones",
  "Data": {
    "Birthday": "1981-03-04",
    "Department": "Engineering" }
},{
  "Name": "Peter Paul",
  "Data": {
    "Birthday": "1975-08-09",
    "Department": "Marketing" }
}]`;

datagrid.magicParseJSON(res);

Result:

datagrid.magicParseXML(xmlString)

Populates the entire datagrid when passed a string representation of properly formatted XML. The magicParse automatically determines type, and leaves any undetermined types as strings.

Parameters:

xmlString: A string representation of a properly formatted XML.

Returns:

None

Example:

var res = `
<BirthdayList>
  <Entry>
    <Name>Jane Jones</Name>
    <Birthday>1981-03-04</Birthday>
    <Department>Engineering</Department>
  </Entry>
  <Entry>
    <Name>Peter Paul</Name>
    <Birthday>1975-08-09</Birthday>
    <Department>Marketing</Department>
  </Entry>
</BirthdayList>
`;

datagrid.magicParseXML(res);

Result:

Discovery Constants

This constant is used when building a discovery tree menu in the Configure Reports Advanced Mode.

discovery.tree

Used with a discovery tree. This references the root node in a discovery tree. Example:

discovery.addLeaf(discovery.tree, "Jane Jones");

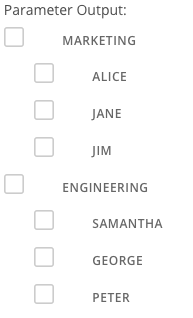

discovery.addNode(discovery.tree, "Marketing");

Discovery Methods

These methods are used when building a discovery tree or discovery dropdown in the Configure Reports Advanced Mode.

discovery.addOption(optionValue)

Used with a discovery dropdown. Adds an option to the dropdown menu.

Parameters:

optionValue: The value to be displayed in the dropdown menu.

Returns:

None

Example:

var data = ['Alice', 'Jane', 'Jim'];

for (let name of data) {
  discovery.addOption(name);
}

Result:

discovery.addNode(parentNode, nodeName)

Used with a discovery tree. Creates a new child node within the node that is passed as a parameter. To create a node at the root level, you must use discovery.tree as the node parameter.

Parameters:

parentNode: An existing node object in the discovery tree.
nodeName: The name displayed on the new node.

Returns:

createdNode: A reference to the newly created node object.

Example:

var data = {
  Marketing: ['Alice', 'Jane', 'Jim'],
  Engineering: ['Samantha', 'George', 'Peter'],
};

for (let department in data) {
  DOMO.log(department);
  let node = discovery.addNode(discovery.tree, department);
  for (let name of data[department]) {
    DOMO.log(name);
    discovery.addLeaf(node, name);
  }
}

discovery.publishTree();

Result:

discovery.addLeaf(parentNode, leafName)

Used with a discovery tree. Creates a new child leaf within the node that is passed as a parameter.

Parameters:

parentNode: An existing node object in the discovery tree.
leafName: The name displayed on the new leaf.

Returns:

None

Example:

var data = ['Alice', 'Jane', 'Jim'];

for (let name of data) {
  discovery.addLeaf(discovery.tree, name);
}

discovery.publishTree();

Result:

discovery.publishTree()

Used with a discovery tree. This method indicates when you have finished constructing a discovery tree.

Parameters:

None

Returns:

None

Example:

var data = ['Alice', 'Jane', 'Jim'];

for (let name of data) {
  discovery.addLeaf(discovery.tree, name);
}

discovery.publishTree();

discovery.addOption()

Used with a discovery dropdown. Adds an option to the dropdown menu. Option name appears as label, option value is used in the code.

Parameters:

optionName, optionValue

Returns:

None

Domo Methods

These methods may be useful in any code block.

DOMO.log(value)

Prints to the Dev Studio console. Make sure you remove any credentials that you are logging for testing before you submit your connector.

Parameters:

value: The value to print. In JavaScript, this can be a string, but it doesn’t have to be.

Returns:

None

Example:

//To log a JavaScript object, just log the object. Just like console.log.:)
DOMO.log(metadata);
DOMO.log(‘metadata.report: ‘ + metadata.report);

DOMO.sleep(milliseconds)

Can be used to space out http requests.

Parameters:

milliseconds: An integer value representing the number of milliseconds you want your connector to sleep.

Returns:

None

Example:

DOMO.sleep(5000);

DOMO.getState(key)

If you have set a state for your connector, this method returns the value of the requested state.

Parameters:

key: The key to the state.

Returns:

value: The value stored with that key.

Example:

DOMO.setState("key", "value");


var value = DOMO.getState("key");
DOMO.log(value);

DOMO.setState(key, value)

If you need to set a state for your connector, this method can be used to set a state value which can be returned using DOMO.getState(key).

Parameters:

key: The key to the state.
value: The value stored with that key.

Returns:

None

Example:

DOMO.setState(1, 123456);


var value = DOMO.getState(1);
DOMO.log(value);

DOMO.parseXML(xmlString)

Used to convert XML to JSON for easier parsing.

Parameters:

xmlString: The key to the state.

Returns:

jsonObject: A JSON object.

Example:

var res = `
<BirthdayList>
  <Entry>
    <Name>Jane Jones</Name>
    <Birthday>1981-03-04</Birthday>
    <Department>Engineering</Department>
  </Entry>
  <Entry>
    <Name>Peter Paul</Name>
    <Birthday>1975-08-09</Birthday>
    <Department>Marketing</Department>
  </Entry>
</BirthdayList>
`;

var jsonObject = DOMO.parseXML(res);
DOMO.log(jsonObject);

Result:

{
  "BirthdayList": {
    "Entry": [
      {
        "Department": "Engineering",
        "Birthday": "1981-03-04",
        "Name": "Jane Jones"
      },
      {
        "Department": "Marketing",
        "Birthday": "1975-08-09",
        "Name": "Peter Paul"
      }
    ]
  }
}

DOMO.getStartDate(metadata.parameters[“Date”])

Used to set the start date.

Parameters:

Date: The start date.

Returns:

Date

Example:

var startDate = DOMO.getStartDate(metadata.parameters['Date']);

DOMO.getEndDate(metadata.parameters[“Date”])

Used to set the end date.

Parameters:

Date: The end date.

Returns:

Date

Example:

var endDate = DOMO.getEndDate(metadata.parameters['Date']);

Domo Encoding Methods

These methods may be useful in any code block to encode data.

DOMO.b64EncodeUnicode(stringToEncode)

Encodes a string using base64 encoding. Base64 encoding is used in the Basic Authentication process, and most endpoints that use username and password will use the Basic Authentication standard.

Parameters:

stringToEncode: The string you wish to encode with base-64 encoding.

Returns:

encodedString: The base-64 encoded string.

Example:

var encodedString = DOMO.b64EncodeUnicode(metadata.account.username + ‘:’ + metadata.account.password);

DOMO.hmacSHA1(stringToEncode, key)

Encodes a string using the provided key to create a hmac-SHA1 hash.

Parameters:

stringToEncode: The string you wish to encode.
key: The string used to create the hmac-SHA1 hash.

Returns:

encodedString: The hmac-SHA1 encoded string.

Example:

var encodedString = DOMO.hmacSHA1(“password”, “key”);

DOMO.hmacSHA256(stringToEncode, key)

Encodes a string using the provided key to create a hmac-SHA256 hash.

Parameters:

stringToEncode: The string you wish to encode.
key: The string used to create the hmac-SHA256 hash.

Returns:

encodedString: The hmac-SHA256 encoded string.

Example:

var encodedString = DOMO.hmacSHA256(“password”, “key”);

DOMO.md5(stringToEncode)

Encodes a string with the md5 algorithm.

Parameters:

stringToEncode: The string you wish to encode with md5 encoding.

Returns:

encodedString: The md5 encoded string.

Example:

var encodedString = DOMO.md5(“password”);

DOMO.getJWT()

Creates a JSON web token (JWT) token using the assigned algorithm signed with the provided key. Note: You must set the algorithm, key, issuer, subject, expiration, and other claims. Supported algorithms: HS256, RS256, ES256

Parameters:

None

Returns:

tokenString: The JWT token.

Example:

//Choose the algorithm, Set the authorization key, issuer, subject, claims, and expiration
DOMO.jwtBuilder.algorithm = “HS256”;
DOMO.jwtBuilder.authKey = "DD558ECE4B3DF7FD31DE964E4F07E43B";
DOMO.jwtBuilder.issuer = "DOMO";
DOMO.jwtBuilder.subject = "12345670";
DOMO.jwtBuilder.claims["abc"] = "test";
DOMO.jwtBuilder.expiration = "1530228571";


//Get the token
var token = DOMO.getJWT();

Domo Decoding Method

This method may be useful in any code block to decode data.

DOMO.b64DecodeUnicode(stringToDecode)

Decodes a string using base64 decoding. Base64 decoding is used in the Basic Authentication process, and most endpoints that use username and password will use the Basic Authentication standard.

Parameters:

stringToDecode: The string you wish to decode with base-64 decoding.

Returns:

decodedString: The base-64 decoded string.

Example:

var decodedString = DOMO.b64DecodeUnicode(metadata.account.username + ‘:’ + metadata.account.password);

HTTP Request Methods

These methods may be useful in any code block. When making your HTTP requests, use the following methods to add headers and parameters, and to make HTTP calls. Note: All URLs must use https.

httprequest.addHeader(key, value)

Add a header to your HTTP request. This is how you can add an Authorization header or any other header you need to your HTTP request. Add headers and parameters before you make the HTTP request.

Parameters:

key: A string that is the header key.
value: A string that is the header value.

Returns:

None

Example:

var encodedData = DOMO.b64EncodeUnicode(
  metadata.account.username + ':' + metadata.account.password,
);

httprequest.addHeader('Authorization', 'Basic ' + encodedData);

var res = httprequest.get('https://developer.domo.com/samplecrm');

httprequest.addParameter(key, value)

Add a parameter to a base URL. Add headers and parameters before you make the HTTP request.

Parameters:

key: A string that is the parameter key.
value: A string that is the parameter value.

Returns:

None

Example:

httprequest.addHeader('Authorization', 'OAuth ' + metadata.account.accesstoken);
httprequest.addParameter('metadata', '0');
httprequest.addParameter('fields', 'id,name,accounts');


//The parameters added above will be automatically added to the URL
//Resulting URL: https://graph.facebook.com/v3.1/me?metadata=0&fields=id,name,accounts
var res = httprequest.get('https://graph.facebook.com/v3.1/me');

httprequest.clearParameters()

Remove all parameters you have added to an httprequest object.

Parameters:

None

Returns:

None

Example:

httprequest.addHeader('Authorization', 'OAuth ' + metadata.account.accesstoken);
httprequest.addParameter('metadata', '0');
httprequest.addParameter('fields', 'id,name,accounts');


//The parameters added above will be automatically added to the URL
//Resulting URL: https://graph.facebook.com/v3.1/me?metadata=0&fields=id,name,accounts
var res = httprequest.get('https://graph.facebook.com/v3.1/me');


//Clear the parameters to make a different call with the same URL
httprequest.clearParameters();

httprequest.clearHeaders()

Remove all headers you have added to an httprequest object.

Parameters:

None

Returns:

None

Example:

var encodedData = DOMO.b64EncodeUnicode(
  metadata.account.username + ':' + metadata.account.password,
);

httprequest.addHeader('Authorization', 'Basic ' + encodedData);

var res = httprequest.get('https://developer.domo.com/samplecrm');

//Clearing header to make call with different header information
httprequest.clearHeaders();

httprequest.getHeader(key)

Get a string containing a particular header’s value from your HTTP request. If you have added headers using the httprequest.addHeader method, you can use this method to retrieve that value.

Parameters:

key: A string that is the parameter key.

Returns:

headerValue: A string that is the value associated with the provided key.

Example:

var encodedData = DOMO.b64EncodeUnicode(
  metadata.account.username + ':' + metadata.account.password,
);

httprequest.addHeader('Authorization', 'Basic ' + encodedData);
httprequest.addHeader('Agent', metadata.account.agent);

//validate the header value before request
DOMO.log(httprequest.getHeader('Agent'));

var res = httprequest.get('https://developer.domo.com/samplecrm');

httprequest.getResponseHeader(key)

When you make an HTTP request, the response will usually include a header containing a set of key/value pairs. Use this method to get the string containing a particular header’s value from your HTTP response. If there are multiple response headers with the same name, then their values are returned as a single concatenated string, where each value is separated by a pair of comma and space.

Parameters:

key: A string that is the parameter key.

Returns:

headerValue: A string that is the value associated with the provided key.

Example:

var encodedData = DOMO.b64EncodeUnicode(
  metadata.account.username + ':' + metadata.account.password,
);

httprequest.addHeader('Authorization', 'Basic ' + encodedData);

var res = httprequest.get('https://developer.domo.com/samplecrm');

var expires = httprequest.getResponseHeader('Expires');

httprequest.getStatusCode()

Get the HTTP response code from your HTTP request. After you make a httprequest.get, httprequest.post, or httprequest.post call, the HTTP response will have a number code. Usually 200 is used if the request has succeeded. For more information, see here. You can use the response code to gracefully handle failed HTTP requests.

Parameters:

None

Returns:

responseCode: The status code that indicates whether your HTTP request has been successfully completed.

Example:

var encodedData = DOMO.b64EncodeUnicode(
  metadata.account.username + ':' + metadata.account.password,
);

httprequest.addHeader('Authorization', 'Basic ' + encodedData);

var res = httprequest.get('https://developer.domo.com/samplecrm');
var code = httprequest.getStatusCode();

DOMO.log('Code: ' + code);

if (code == 200) {
  //DO WORK
} else {
  //HANDLE FAILED HTTP REQUEST
}

httprequest.get(url)

Make an http get request. Any headers or parameters added before making the request will be included by Domo when making the get request. Note: All URLs must use https.

Parameters:

url: The URL you would like to use to make an HTTP get request.

Returns:

responseString: The response from the endpoint you called.

Example:

var encodedData = DOMO.b64EncodeUnicode(
  metadata.account.username + ':' + metadata.account.password,
);

httprequest.addHeader('Authorization', 'Basic ' + encodedData);

var res = httprequest.get('https://developer.domo.com/samplecrm');

httprequest.post(url)

Make an HTTP post request without any request body. Any headers or parameters added before making the request will be included by Domo when making the post request. Note: All URLs must use https.

Parameters:

url: The URL you would like to use to make an HTTP post request.

Returns:

responseString: The response from the endpoint you called.

Example:

var encodedData = DOMO.b64EncodeUnicode(
  metadata.account.username + ':' + metadata.account.password,
);

httprequest.addHeader('Authorization', 'Basic ' + encodedData);

var res = httprequest.post('https://developer.domo.com/samplecrm');

httprequest.post(url, bodyString)

Make an HTTP post request with a request body. Any headers or parameters added before making the request will be included by Domo when making the post request. Note: All URLs must use https.

Parameters:

url: The URL you would like to use to make an HTTP post request.
bodyString: The body of your HTTP post request.

Returns:

responseString: The response from the endpoint you called.

Example:

var encodedData = DOMO.b64EncodeUnicode(
  metadata.account.username + ':' + metadata.account.password,
);

httprequest.addHeader('Authorization', 'Basic ' + encodedData);

var res = httprequest.post(
  'https://developer.domo.com/samplecrm',
  'This is my request body',
);

httprequest.put(url, bodyString)

Make an HTTP put request with a request body. Any headers or parameters added before making the request will be included by Domo when making the put request. Note: All URLs must use https.

Parameters:

url: The URL you would like to use to make an HTTP get request.
bodyString: The body of your HTTP post request.

Returns:

responseString: The response from the endpoint you called.

Example:

var encodedData = DOMO.b64EncodeUnicode(
  metadata.account.username + ':' + metadata.account.password,
);

httprequest.addHeader('Authorization', 'Basic ' + encodedData);

var res = httprequest.put(
  'https://developer.domo.com/samplecrm',
  'this is my request body',
);

Getting Started

API Reference

Build Apps

Automate Actions

Partner Developers

AI Resources Guide

Connect Data

Embed Domo Everywhere

Govern Your Domo Instance

Other Resources

​Auth

​Datagrid

​Discovery

​Domo

​HTTP Request

​Metadata

​Metadata object structure

​Metadata access examples

​SQL

​AWS

​Examples

​Method Details

​Auth Methods

​auth.authenticationSuccess()

​auth.authenticationFailed(errorMessage)

​Datagrid Constants

​datagrid.DATA_TYPE_STRING

​datagrid.DATA_TYPE_DOUBLE

​datagrid.DATA_TYPE_DATETIME

​datagrid.DATA_TYPE_DATE

​Datagrid Methods

​datagrid.addColumn(columnName, dataType)

​datagrid.addCell(cellData)

​datagrid.endRow()

​datagrid.error(code, errorMessage)

​datagrid.magicParseCSV(csvString)

​datagrid.magicParseJSON(jsonString)

​datagrid.magicParseXML(xmlString)

​Discovery Constants

​discovery.tree

​Discovery Methods

​discovery.addOption(optionValue)

​discovery.addNode(parentNode, nodeName)

​discovery.addLeaf(parentNode, leafName)

​discovery.publishTree()

​discovery.addOption()

​Domo Methods

​DOMO.log(value)

​DOMO.sleep(milliseconds)

​DOMO.getState(key)

​DOMO.setState(key, value)

​DOMO.parseXML(xmlString)

​DOMO.getStartDate(metadata.parameters[“Date”])

​DOMO.getEndDate(metadata.parameters[“Date”])

​Domo Encoding Methods

​DOMO.b64EncodeUnicode(stringToEncode)

​DOMO.hmacSHA1(stringToEncode, key)

​DOMO.hmacSHA256(stringToEncode, key)

​DOMO.md5(stringToEncode)

​DOMO.getJWT()

​Domo Decoding Method

​DOMO.b64DecodeUnicode(stringToDecode)

​HTTP Request Methods

​httprequest.addHeader(key, value)

​httprequest.addParameter(key, value)

​httprequest.clearParameters()

​httprequest.clearHeaders()

​httprequest.getHeader(key)

​httprequest.getResponseHeader(key)

​httprequest.getStatusCode()

​httprequest.get(url)

​httprequest.post(url)

​httprequest.post(url, bodyString)

​httprequest.put(url, bodyString)

Auth

Datagrid

Discovery

Domo

HTTP Request

Metadata

Metadata object structure

Metadata access examples

SQL

AWS

Examples

Method Details

Auth Methods

auth.authenticationSuccess()

auth.authenticationFailed(errorMessage)

Datagrid Constants

datagrid.DATA_TYPE_STRING

datagrid.DATA_TYPE_DOUBLE

datagrid.DATA_TYPE_DATETIME

datagrid.DATA_TYPE_DATE

Datagrid Methods

datagrid.addColumn(columnName, dataType)

datagrid.addCell(cellData)

datagrid.endRow()

datagrid.error(code, errorMessage)

datagrid.magicParseCSV(csvString)

datagrid.magicParseJSON(jsonString)

datagrid.magicParseXML(xmlString)

Discovery Constants

discovery.tree

Discovery Methods

discovery.addOption(optionValue)

discovery.addNode(parentNode, nodeName)

discovery.addLeaf(parentNode, leafName)

discovery.publishTree()

discovery.addOption()

Domo Methods

DOMO.log(value)

DOMO.sleep(milliseconds)

DOMO.getState(key)

DOMO.setState(key, value)

DOMO.parseXML(xmlString)

DOMO.getStartDate(metadata.parameters[“Date”])

DOMO.getEndDate(metadata.parameters[“Date”])

Domo Encoding Methods

DOMO.b64EncodeUnicode(stringToEncode)

DOMO.hmacSHA1(stringToEncode, key)

DOMO.hmacSHA256(stringToEncode, key)

DOMO.md5(stringToEncode)

DOMO.getJWT()

Domo Decoding Method

DOMO.b64DecodeUnicode(stringToDecode)

HTTP Request Methods

httprequest.addHeader(key, value)

httprequest.addParameter(key, value)

httprequest.clearParameters()

httprequest.clearHeaders()

httprequest.getHeader(key)

httprequest.getResponseHeader(key)

httprequest.getStatusCode()

httprequest.get(url)

httprequest.post(url)

httprequest.post(url, bodyString)

httprequest.put(url, bodyString)
