This tutorial will walk you through building a custom React app that displays a world map with data points using Mapbox. As you follow along, you will get experience doing a few things:
  • Create a web app from scratch using Domo’s React app template
  • Use the Mapbox GL JS library to build a custom map
  • Wire the app to a dataset in Domo and fetch data to add points to the map
All code and files used for this tutorial can be found at this GitHub repository.

​
Step 1: Setup and installation

Before beginning, please make sure you’ve successfully installed the Domo Apps CLI and followed the basic setup and installation instructions found here. When following the article, please skip Step 3: Create a New App. We will be creating a React app instead of a simple Javascript app. Initialize a React project using Domo’s template by following the steps in this article. Once your project has been created, open it in your preferred IDE and run yarn (or npm install) to install all required dependencies. When you’re ready, run yarn start (or npm start) to start developing locally.

​
Step 2: Sign up for a free Mapbox account

If you don’t already have a Mapbox account, you can create one for free here. This is a requirement to get your own custom app running with Mapbox. Once you’ve created your account, you should be able to get your personal Access tokens at the bottom of your account home screen. If you’re having trouble finding them, or you’d like to learn more about access tokens, read Mapbox’s support article on Access Tokens.

​
Step 3: Set up app components

Open the public and src folders to see the files that were auto-generated for you in Step 2. For this tutorial, we will only make changes to the App.js, App.css, and manifest.json files.
  • App.js and App.css will contain the code to build the mapbox app and style it how we want.
  • The manifest.json file is a special Domo file that is required for building apps on the Domo App Framework. We will use this file to wire our app to a dataset in Domo. What is the manifest file?
To start, we will update the contents of App.js to include a container div for a map. We will also add a couple of refs to control the content of our container. Replace everything inside of App.js with the following lines of code:
import React, { useRef } from 'react';
import './App.css';

function App() {
  const mapRef = useRef(null);
  const mapContainerRef = useRef(null);

  return (
    <div id="map-container" className="mapContainer" ref={mapContainerRef} />
  );
}

export default App;
Next, replace the contents of App.css with this simple CSS class:
.mapContainer {
  height: 100vh;
  width: 100vw;
}

​
Step 4: Instantiate Mapbox

First, install the mapbox-gl package using either yarn or npm. Run one of the following commands in your terminal from the context of your app. $ yarn add mapbox-gl or $ npm install mapbox-gl Next, add the following imports to the very top of your App.js file to bring in the Mapbox GL JS library and dependencies.
import mapboxgl from 'mapbox-gl';
import 'mapbox-gl/dist/mapbox-gl.css';
We are now going to add a useEffect to our component to instantiate an instance of Mapbox once our component has loaded into the DOM and is ready to render the map. Below your useRef lines of code, add the following snippet:
useEffect(() => {
  mapboxgl.accessToken = 'YOUR_MAPBOX_ACCESS_TOKEN';

  mapRef.current = new mapboxgl.Map({
    container: mapContainerRef.current,
  });

  return () => {
    mapRef.current.remove();
  };
}, []);
Replace YOUR_MAPBOX_ACCESS_TOKEN with your own personal Mapbox access token. You should have seen this when completing Step 3. This will give your app the access it needs to interact with the Mapbox GL JS library. Once you’ve followed all of these steps, your App.js file should look like this:
import React, { useEffect, useRef } from 'react';
import './App.css';
import mapboxgl from 'mapbox-gl';
import 'mapbox-gl/dist/mapbox-gl.css';

function App() {
  const mapRef = useRef(null);
  const mapContainerRef = useRef(null);

  useEffect(() => {
    mapboxgl.accessToken = 'YOUR_MAPBOX_ACCESS_TOKEN';

    mapRef.current = new mapboxgl.Map({
      container: mapContainerRef.current,
    });

    return () => {
      mapRef.current.remove();
    };
  }, []);

  return (
    <div id="map-container" className="mapContainer" ref={mapContainerRef} />
  );
}

export default App;

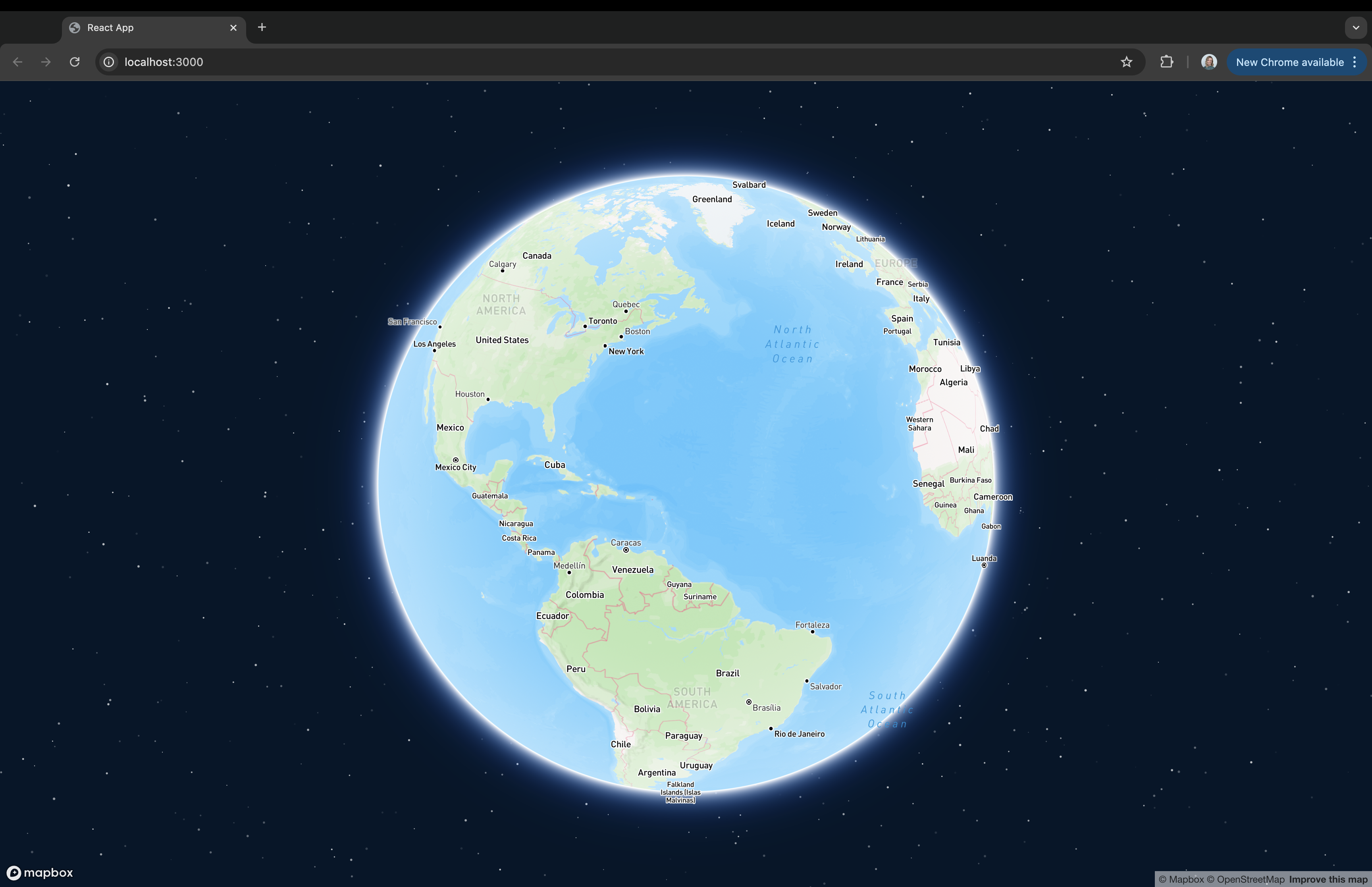

If you’re not already running your local development environment, run the start command in your terminal. yarn start or npm start Check your browser at localhost:3000, where your app should be running. You should see an interactive globe map. You can use your scroll wheel to zoom in and out, and you can drag the globe to rotate it. mapbox-globe.png

​
Step 5: Style map and add a few points

Mapbox provides a way to create custom map styles inside their Mapbox Studio feature. We won’t be building one in this tutorial, but you can find out how to do it yourself by following their guide, Create a custom style. We’ve created a simple custom style already and we are providing you the json file that will allow you to use it in your app. You can get it from the code repo for this tutorial. Please download the map-style.json file here. You’ll want to add the map-style.json file to your src folder. Then, bring it into your app by adding this line of code at the top of your App.js file:
import rawMapStyle from './map-style.json';
Then, to implement the custom style, update your Mapbox instantiation within the useEffect:
mapRef.current = new mapboxgl.Map({
  container: mapContainerRef.current,
  style: rawMapStyle,
  maxBounds: [
    [-230, -60], // Southwest corner (hide Antarctica)
    [230, 70], // Northeast corner (keep map within bounds)
  ],
});
If you return to your browser, your app should now look like this: mapbox-cartesian.png Our custom style converts the map from a globe to a cartesian map, where it appears to be laying flat. We also set some dark colors for the land and sea. Now, we’re going to add a few sample data points to our map. Let’s put 10 major U.S. cities on the map. Add this city data array above your useEffect:
const points = [
  {
    name: 'Chicago',
    latitude: 41.8781,
    longitude: -87.6298,
    radius: 3,
    color: '#A221B9',
  },
  {
    name: 'Dallas',
    latitude: 32.7767,
    longitude: -96.797,
    radius: 3,
    color: '#A221B9',
  },
  {
    name: 'Houston',
    latitude: 29.7604,
    longitude: -95.3698,
    radius: 3,
    color: '#A221B9',
  },
  {
    name: 'Los Angeles',
    latitude: 34.0522,
    longitude: -118.2437,
    radius: 3,
    color: '#A221B9',
  },
  {
    name: 'New York',
    latitude: 40.7128,
    longitude: -74.006,
    radius: 3,
    color: '#A221B9',
  },
  {
    name: 'Philadelphia',
    latitude: 39.9526,
    longitude: -75.1652,
    radius: 3,
    color: '#A221B9',
  },
  {
    name: 'Phoenix',
    latitude: 33.4484,
    longitude: -112.074,
    radius: 3,
    color: '#A221B9',
  },
  {
    name: 'San Antonio',
    latitude: 29.4241,
    longitude: -98.4936,
    radius: 3,
    color: '#A221B9',
  },
  {
    name: 'San Diego',
    latitude: 32.7157,
    longitude: -117.1611,
    radius: 3,
    color: '#A221B9',
  },
  {
    name: 'San Jose',
    latitude: 37.3382,
    longitude: -121.8863,
    radius: 3,
    color: '#A221B9',
  },
];
Next, we’ll add some code to our useEffect that will iterate over the cities and turn them into points on our map. Mapbox uses the latitude and longitude of our data points to position elements on the map. We are telling Mapbox to add a layer of circles using our data, and then we pass the radius, color, and opacity to customize the look. Update your useEffect to look like this:
useEffect(() => {
  mapboxgl.accessToken = 'YOUR_MAPBOX_ACCESS_TOKEN';

  mapRef.current = new mapboxgl.Map({
    container: mapContainerRef.current,
    style: rawMapStyle,
    maxBounds: [
      [-230, -60], // Southwest corner (hide Antarctica)
      [230, 70], // Northeast corner (keep map within bounds)
    ],
  });

  // After the map loads, add data points
  mapRef.current.on('load', () => {
    const dataPoints = {
      type: 'FeatureCollection',
      features: points.map((point) => ({
        type: 'Feature',
        geometry: {
          type: 'Point',
          coordinates: [point.longitude, point.latitude],
        },
        properties: {
          name: point.name,
          radius: point.radius,
          color: point.color,
        },
      })),
    };

    // Add the source
    mapRef.current.addSource('dataPoints', {
      type: 'geojson',
      data: dataPoints,
    });

    // Add a circle layer
    mapRef.current.addLayer({
      id: 'circle-layer',
      type: 'circle',
      source: 'dataPoints',
      paint: {
        'circle-radius': ['get', 'radius'], // Circle radius
        'circle-color': ['get', 'color'], // Circle color
        'circle-opacity': 0.7, // Circle opacity
      },
    });
  });

  return () => {
    mapRef.current.remove();
  };
}, []);

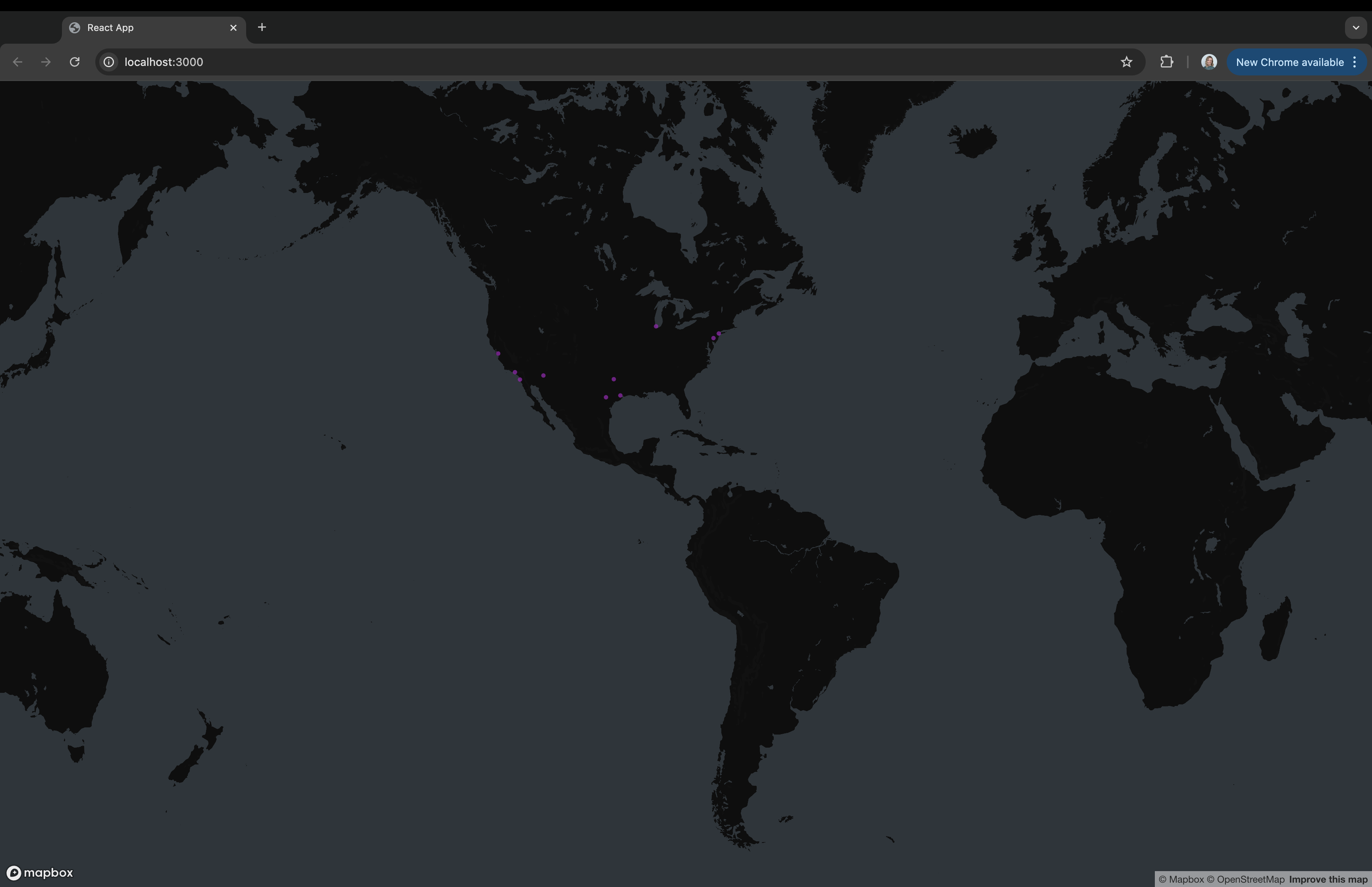

Save your changes and check the browser. You should see our 10 U.S. cities on the map as little magenta circles. mapbox-sample-points.png

​
Step 6: Wire data to our app

Now that we have our map looking how we want it, it’s time to add some real data to it. Building Domo apps on the App Framework becomes the most powerful when we’re able to leverage connections with your data via wiring to DataSets, AppDB collections, Workflows, and more. For this tutorial, we will be wiring our app to a DataSet that contains population data for cities all over the world. First, you will want to download the World_Cities.csv file from the code repo, which you can find here. Then, upload the DataSet to your Domo instance. Go to the Data tab in Domo, click on CONNECT DATA at the top of the screen, then select Upload a spreadsheet. You’ll then be able to select the file from your machine or drag and drop into the UI. Click through the file upload screens and save the dataset without making any modifications. Now, return to your app and open the manifest.json file. We’re going to add an entry to the mapping property for the dataset we just created in Domo. Update the contents of your manifest.json file to look like this:
{
  "name": "World Map App",
  "version": "0.0.1",
  "size": {
    "width": 3,
    "height": 3
  },
  "mapping": [
    {
      "alias": "geoData",
      "dataSetId": "YOUR_DATASET_ID",
      "fields": [
        {
          "alias": "id",
          "columnName": "id"
        },
        {
          "alias": "city",
          "columnName": "city"
        },
        {
          "alias": "country",
          "columnName": "country"
        },
        {
          "alias": "lat",
          "columnName": "lat"
        },
        {
          "alias": "long",
          "columnName": "lng"
        },
        {
          "alias": "dataPoint",
          "columnName": "population"
        }
      ]
    }
  ]
}

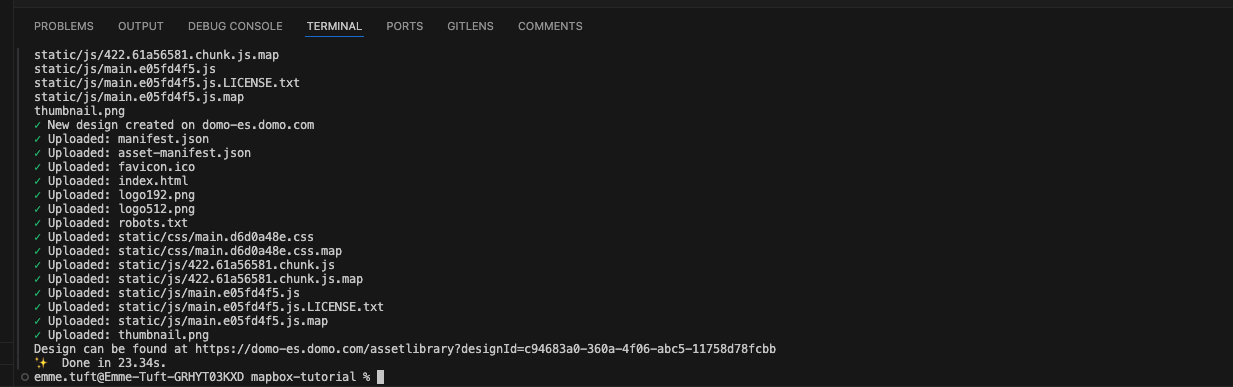

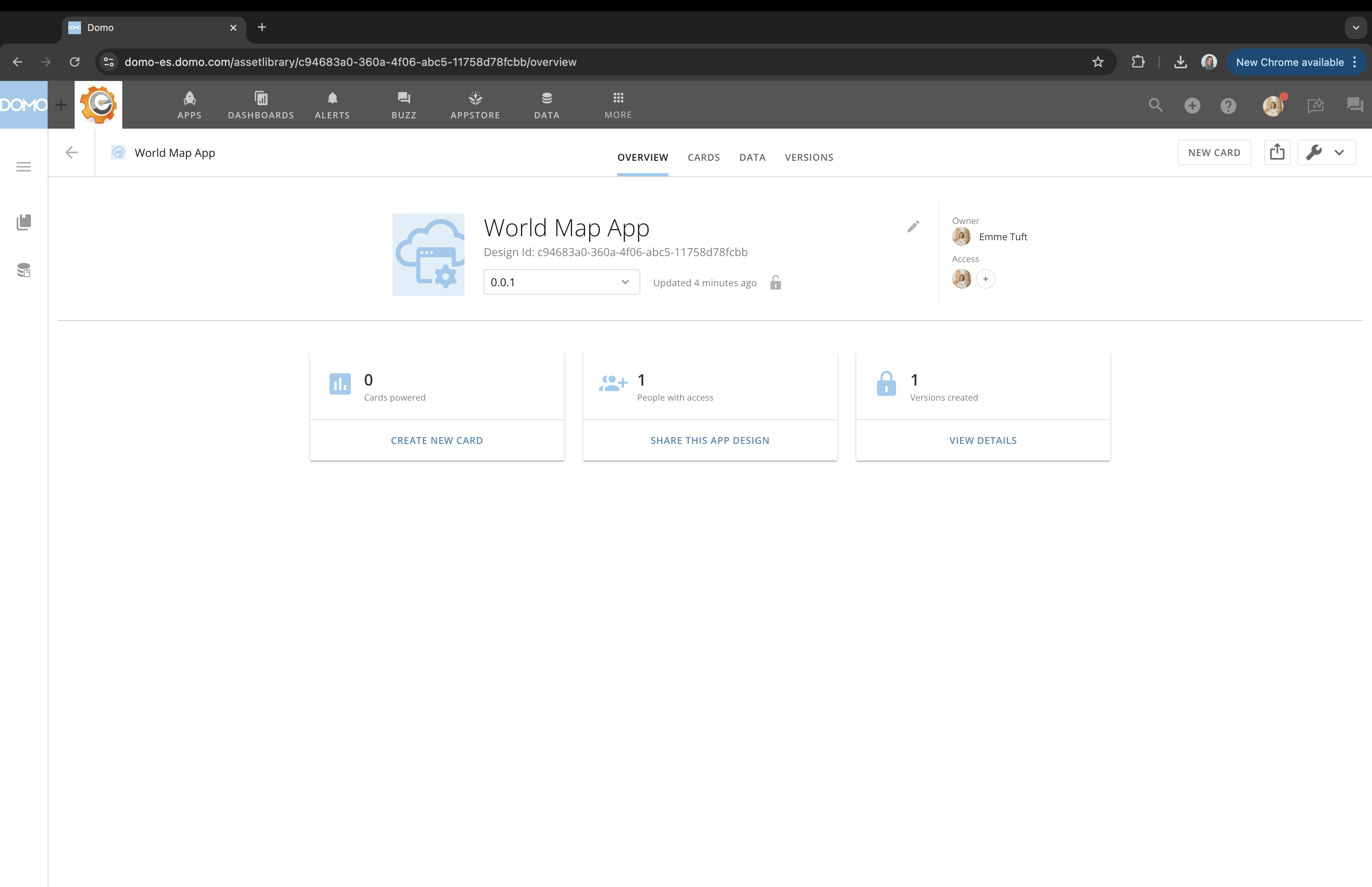

Replace YOUR_DATASET_ID with the unique ID for the dataset you created in your Domo instance a moment ago. You can find the ID in the URL bar when viewing the dataset. dataset-id-example.png Before we can query this dataset locally, we’ll need to upload our app to Domo in order to establish the connection we’ve added to the manifest.json file. Let’s do that now. Login to your Domo instance from the command line by running this command: domo login You will be prompted to select a Domo instance, or enter a new one. Enter your assigned instance URL and then press enter (e.g. ‘my_company.domo.com’). You’ll then be presented with a login screen and the Domo CLI will be authorized on your instance. Next, run yarn upload or npm upload. This will build your project and create a new app Design in your Domo instance. If the command runs successfully, you’ll see something like this in your terminal when it’s finished: app-upload-success.png Now, let’s find the newly created Design in your Domo instance. Return to Domo in the browser, click on the MORE option at the top, and select Asset Library. You should be able to find your World Map App here. Click on the asset to open its details. Below the name of the asset, you’ll see a Design Id. Copy that. asset-example.png Return to your app so we can add the Design Id to the manifest.json file. After the closing square brackets of your mapping property, add a comma and a new line. Then, add this line of code:
"id": "YOUR_DESIGN_ID"

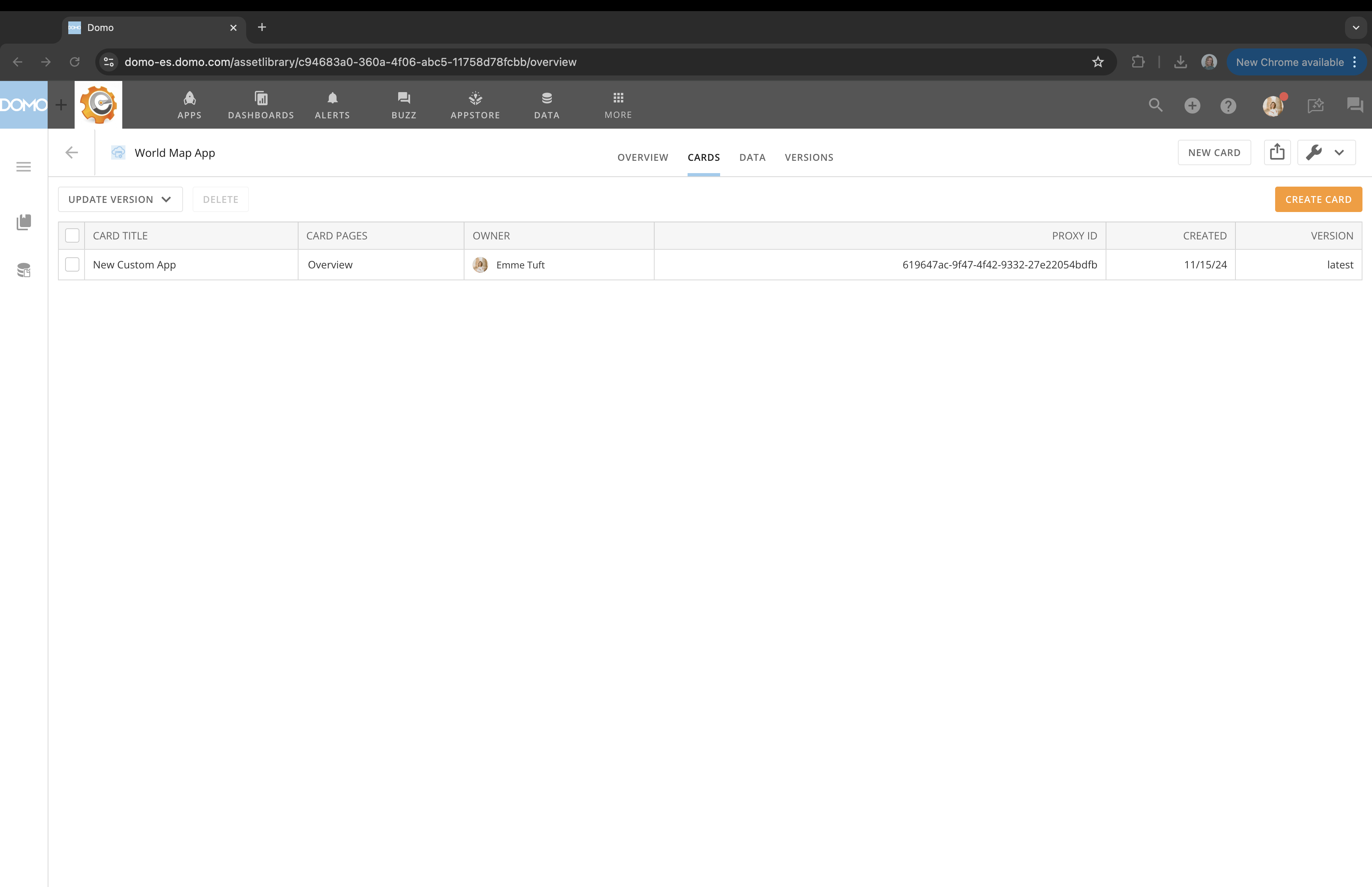

Next, we’ll create a new card from our asset in Domo that will act as a proxy while we’re developing locally. Since Domo is unaware of your local dev environment, it doesn’t know which mappings to use unless you connect Domo entities (like DataSets and Workflows) to a Domo card. From your World Map App Design page, click on the Cards tab at the top, and then select Create Card in the top right. This will open the card details screen. From this view, you should see a preview of your App as well as all of the Domo entities that are/can be wired to it. Since we added our DataSet Id to our manifest.json file earlier, you should see that the World_Cities.csv file is wired to your app. If not, you can select it manually. Click Save & Finish in the top right to save your new Card. Now, return to the Asset Library and find your Design again. Click on the Cards tab at the top and you should see your newly created card. Find the Proxy Id property and copy that value. asset-card-example.png Return to the manifest.json file in your app and add another line below the previous addition:
"proxyId": "YOUR_PROXY_ID"
Once all is said and done, your manifest.json file should look something like this:
{
  "name": "World Map App",
  "version": "0.0.1",
  "size": {
    "width": 3,
    "height": 3
  },
  "mapping": [
    {
      "alias": "geoData",
      "dataSetId": "08a9f9eb-b7c3-4066-abba-47875733b0de",
      "fields": [
        {
          "alias": "id",
          "columnName": "id"
        },
        {
          "alias": "city",
          "columnName": "city"
        },
        {
          "alias": "country",
          "columnName": "country"
        },
        {
          "alias": "lat",
          "columnName": "lat"
        },
        {
          "alias": "long",
          "columnName": "lng"
        },
        {
          "alias": "dataPoint",
          "columnName": "population"
        }
      ]
    }
  ],
  "id": "c94683a0-360a-4f06-abc5-11758d78fcbb",
  "proxyId": "619647ac-9f47-4f42-9332-27e22054bdfb"
}
Now we’re ready to query the dataset from our app!

​
Step 7: Query data and render points on the map

We are going to use the Domo CLI (aka ryuu.js from within an app) to fetch data from our instance. What is the Domo CLI? Install the library using yarn add ryuu.js or npm install ryuu.js Then, import it into your app by adding this line at the top of your App.js file:
import domo from 'ryuu.js';
Add a new useEffect to your component that uses domo.get to fetch data from the World_Cities DataSet.
useEffect(() => {
  const fetchData = async () => {
    const response = await domo.get('/data/v1/geoData');
    console.log(response);
  };

  fetchData();
}, []);
We are using the Data API for the App Framework, which is documented here. This GET endpoint uses the dataset alias, which we set in our manifest.json file. We set the alias as geoData, but you can set it to whatever you’d like. Make sure your app is running in the browser and refresh the page. In your Javascript console, you should see over 45,000 rows of data being printed (you can open the console by right-clicking on the screen and clicking Inspect). This is just a quick check to make sure our data is being fetched as expected, but now we’re going to add the data to our map. We’re going to add a few things here. Add a useState to store our data points below our useRef lines, then set the points after fetching the data. Also create a couple of helper functions to determine each point’s radius and color.
function App() {
  const mapRef = useRef(null);
  const mapContainerRef = useRef(null);

  const [points, setPoints] = useState([]);

  const POPULATION_LIMIT = 50000;
  const POINT_STEP = 100000;

  const getPointRadius = (row) => {
    const step = Math.min(
      Math.floor((row.dataPoint - POPULATION_LIMIT) / POINT_STEP),
      3
    );
    return 1 + step * 0.2;
  };

  const getPointColor = (row) => {
    const step = Math.min(
      Math.floor((row.dataPoint - POPULATION_LIMIT) / POINT_STEP),
      4
    );
    const colors = ["#8F1CCD", "#A221B9", "#E0329D", "#DF7B90", "#E8AD85"];
    return colors[step];
  };

  useEffect(() => {
    const fetchData = async () => {
      const response = await domo.get("/data/v1/geoData");
      const data = response.map((data) => ({
        name: data.city,
        latitude: data.lat,
        longitude: data.long,
        radius: getPointRadius(data),
        color: getPointColor(data),
      }));
      setPoints(data);
    };

    fetchData();
  }, []);

  ...
Then, adjust your big useEffect (the one that renders the map) to make it dependent on our points array and prevent it from rendering anything before the data is ready.
useEffect(() => {
  if (points.length === 0) return;

  mapboxgl.accessToken = "YOUR_MAPBOX_ACCESS_TOKEN";

    ...

  return () => {
    mapRef.current.remove();
  };
}, [points]);
That’s all the code! Your App.js file should end up looking like this:
import React, { useEffect, useRef, useState } from 'react';
import domo from 'ryuu.js';
import mapboxgl from 'mapbox-gl';
import 'mapbox-gl/dist/mapbox-gl.css';
import rawMapStyle from './map-style.json';
import './App.css';

function App() {
  const mapRef = useRef(null);
  const mapContainerRef = useRef(null);

  const [points, setPoints] = useState([]);

  const POPULATION_LIMIT = 50000;
  const POINT_STEP = 100000;

  const getPointRadius = (row) => {
    const step = Math.min(
      Math.floor((row.dataPoint - POPULATION_LIMIT) / POINT_STEP),
      3,
    );
    return 1 + step * 0.2;
  };

  const getPointColor = (row) => {
    const step = Math.min(
      Math.floor((row.dataPoint - POPULATION_LIMIT) / POINT_STEP),
      4,
    );
    const colors = ['#8F1CCD', '#A221B9', '#E0329D', '#DF7B90', '#E8AD85'];
    return colors[step];
  };

  useEffect(() => {
    const fetchData = async () => {
      const response = await domo.get('/data/v1/geoData');
      const data = response.map((data) => ({
        name: data.city,
        latitude: data.lat,
        longitude: data.long,
        radius: getPointRadius(data),
        color: getPointColor(data),
      }));
      setPoints(data);
    };

    fetchData();
  }, []);

  useEffect(() => {
    if (points.length === 0) return;

    mapboxgl.accessToken = 'YOUR_MAPBOX_ACCESS_TOKEN';

    mapRef.current = new mapboxgl.Map({
      container: mapContainerRef.current,
      style: rawMapStyle,
      maxBounds: [
        [-230, -60], // Southwest corner (hide Antarctica)
        [230, 70], // Northeast corner (keep map within bounds)
      ],
    });

    // After the map loads, add data points
    mapRef.current.on('load', () => {
      const dataPoints = {
        type: 'FeatureCollection',
        features: points.map((point) => ({
          type: 'Feature',
          geometry: {
            type: 'Point',
            coordinates: [point.longitude, point.latitude],
          },
          properties: {
            name: point.name,
            radius: point.radius,
            color: point.color,
          },
        })),
      };

      // Add the source
      mapRef.current.addSource('dataPoints', {
        type: 'geojson',
        data: dataPoints,
      });

      // Add a circle layer
      mapRef.current.addLayer({
        id: 'circle-layer',
        type: 'circle',
        source: 'dataPoints',
        paint: {
          'circle-radius': ['get', 'radius'], // Circle radius
          'circle-color': ['get', 'color'], // Circle color
          'circle-opacity': 0.7, // Circle opacity
        },
      });
    });

    return () => {
      mapRef.current.remove();
    };
  }, [points]);

  return (
    <div id="map-container" className="mapContainer" ref={mapContainerRef} />
  );
}

export default App;

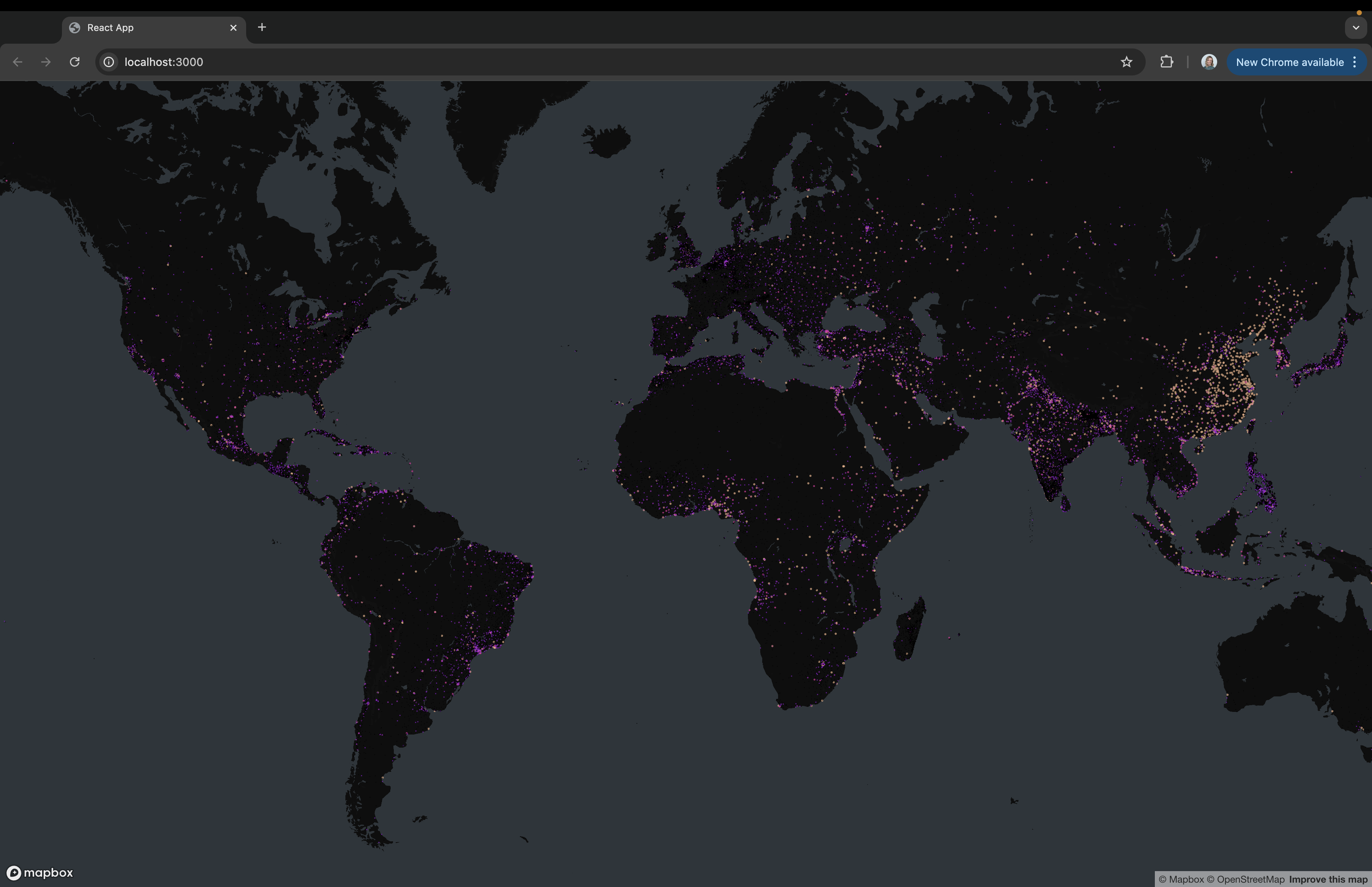

Return to the browser and look at your finished map (you may need to refresh). You should see thousands of points all over the map, where the size and color of each point is determined by the population size of the city. How beautiful and interesting! mapbox-finished.png Congratulations! You’ve completed this tutorial. Now that you know how to wire an app to a DataSet and how to render a map from Mapbox, you might have more ideas of how you could use these features to your benefit. A map like this can be further iterated on to add hover interactions to display data, to give one example. We hope you enjoyed building your own custom app and invite you to continue from here. Check out the Mapbox documentation if you’d like to add more to your map. Reach out to us with questions and get involved with the Domo community to see how others are building custom apps like this one.
