Workflows are a powerful way to build action into your apps. You can learn more about how workflows unlock business process automation in Domo’s Knowledge Base. In order to be able to call a workflow from an app, you need to add a workflow mapping definition to your app’s manifest file and then wire up a workflow to the app in the wiring screen. To be able to test your workflow locally, please also make sure that you have configured your app with a proxyId.

​
Manifest

Add a workflowsMapping property to the manifest.json file that defines the workflow(s) using the following format:

"workflowsMapping": [
    {
      "alias": "workflow1",
      "modelId": null,
      "version": null,
      "parameters": [
        {
          "name": "num1",
          "aliasedName": "firstNumber",
          "type": "number",
          "list": false,
          "children": []
        },
        {
          "name": "num2",
          "aliasedName": "secondNumber",
          "type": "number",
          "list": false,
          "children": []
        }
      ]
    },
    {
      "alias": "workflow2",
      "parameters": [
        {
          "aliasName": "thing1",
          "type": "number",
          "list": false,
          "value": 2,
          "children": null
        },
        {
          "aliasName": "thing2",
          "type": "number",
          "list": false,
          "children": null
        }
      ]
    }
  ]
The workflowsMapping property takes an array of workflow mappings. A workflow mapping is an array of objects with the following properties:
  • An alias (string) - the alias you’d like to use when you reference the workflow in your code.
  • A list of input parameters required to start the workflow. These parameters include the following properties:
    • aliasedName(string) - the alias of the parameter you are passing in to the workflow
    • type (string) - type of the parameter you are passing into the workflow. The valid options are:
      • boolean
      • date
      • dateTime
      • decimal
      • duration
      • number
      • object
      • person
      • dataset
      • group
      • text
      • time
    • list (boolean) - whether the parameter is a list or not.
    • children (workflow mapping object) - if the parameter is a defined object, you can define the nested properties here.

​
Starting a Workflow: Code Example

const startWorkflow = (alias, body) => {
  domo.post(`/domo/workflow/v1/models/${alias}/start`, body);
};

startWorkflow('workflow1', { num1: 10, num2: 20 });
The alias parameter in the startWorkflow function is the alias that you defined in your manifest. The body parameter is an object where the keys match the aliasedName keys defined in the parameters property of the workflow definition in your manifest.

​
Wiring Screen

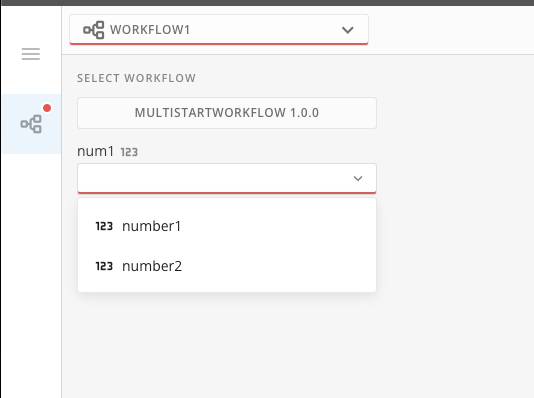

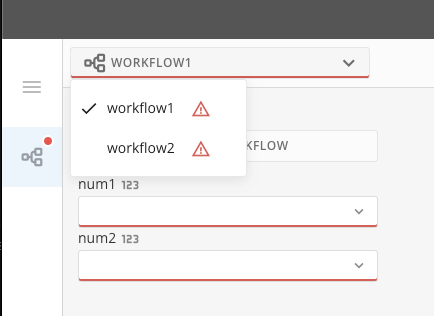

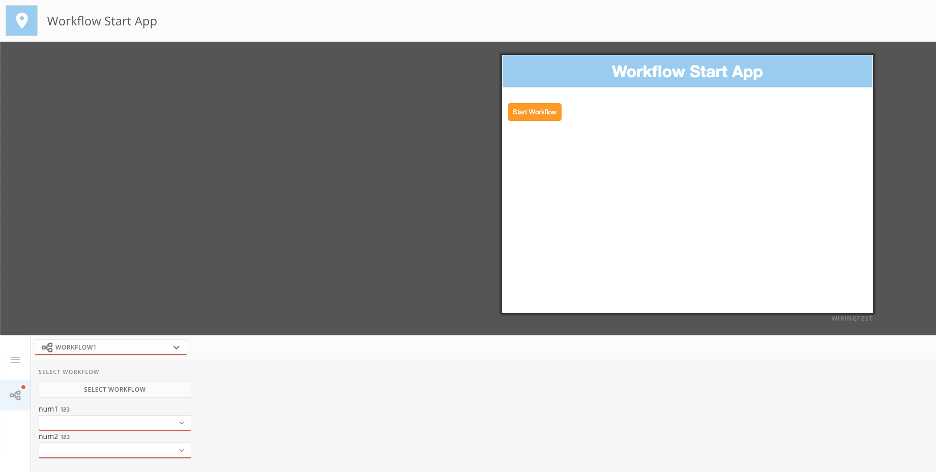

After publishing your app, you will need to wire it to the workflow you want to start by editing an existing app card, or creating a new one. image.png First, choose which workflow you want to wire up. The workflow wiring options that appear in the wiring screen will be the workflows defined in your workflowMapping array in your manifest image.png Next, click “Select Workflow”. This will open a modal to choose your workflow version. image.png Finally, choose your workflow, then wire up the inputs. image.png Once you’re done, click “Save and Finish” and you should now be able to start your workflow from your app.
