Intro

Microsoft OneDrive is an online file sharing and personal cloud content management service for businesses. Use this connector to export your data from a Domo DataSet to a specified OneDrive folder. For more information about the OneDrive API, see https://msdn.microsoft.com/en-us/lib…/dn659752.aspx. You export data to OneDrive in the Data Center. This topic discusses the fields and menus that are specific to the Microsoft OneDrive Writeback connector user interface. General information for adding DataSets, setting update schedules, and editing DataSet information is discussed in Adding a DataSet Using a Data Connector.
Note: The owner of a writeback dataset must also be an owner or co-owner of the input dataset.

​
Prerequisites

To configure this connector, you need the following:
  • An installed Microsoft Azure app.
  • The client ID and client secret associated with your Domo Developer account.
  • The Secret ID and Value associated with your Microsoft Azure app.

​
To obtain your Domo Client ID and Client Secret:

  1. Log into the Domo developer account.
  2. In the top right corner under My Account click New Client.
  3. Enter the application name and description.
  4. Provide the application scope by selecting the checkboxes for Data and User.
  5. Click Create. Once you have created a client, you can manage the client by clicking on Manage Client.
  6. Your Client Secret will appear in the Manage Client section.

​
To obtain your Secret (client) ID:

  1. Go to https://portal.azure.com.
  2. Select Azure Active Directory > App registrations.
  3. Find and click on your web app.
  4. The “application ID” is your Client ID.

​
To obtain your Secret Value:

  1. Go to https://portal.azure.com.
  2. Select Azure Active Directory > App registrations.
  3. Find and click on your web app.
  4. Open Certificates and secrets.
  5. Click +New client secret.
  6. Provide the client secret description and the expiry period for your secret. Click Add.
  7. Your new client secret will appear. Copy it and paste in your Domo connector Client Secret field.

​
Microsoft Permissions

Having the correct permissions within Microsoft allows Domo to effectively access your data using the Microsoft OneDrive Writeback connector.

​
Setting Permissions for New Apps

These steps pertain only to new apps.
  1. Navigate to https://apps.dev.microsoft.com/ and sign in.
  2. Click Add an app.
  3. Name the app.
  4. Click Create.
    The APP ID that appears is the Client ID.
  5. Click Generate new password.
     Be sure to SAVE THIS—you will not see it again. This is your Secret.
  6. Click OK.
  7. Click Add platform.
  8. Select Web.
  9. In the Redirect URLs field, enter the URL https://oauth.domo.com/api/data/v1/o…drive/exchange.
  10. Click Save.

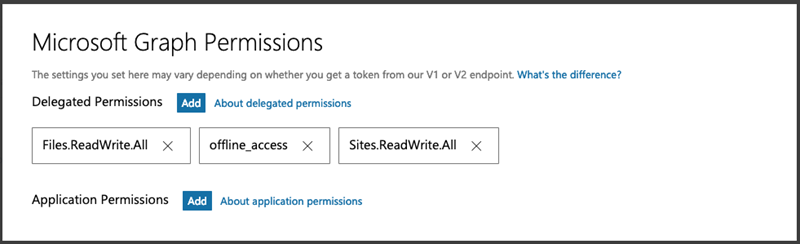

  11. Add permissions for Files.Read.All, offline_access, and Sites.ReadWrite.All.
  12. Click Save.
  13. Select Certificates & Secrets under Manage. Certificates can be used as secrets to prove the application’s identity when requesting a token. Also, can be referred to as public keys.
  14. Select the + New client secret button.
  15. Enter a value in Description, select a suitable option for Expires and click Add.
    Important: Ensure to copy the client secret Value (not the Secret ID) before leaving the page. It’s not displayed again after you leave this page.
  16. Go to Domo Connector and use the Client ID and Secret to connect.

​
Configuring the Connection

This section enumerates the options in the Credentials and Details panes in the Microsoft OneDrive Writeback Connector page. The components of the other panes in this page, Scheduling and Name & Describe Your DataSet, are universal across most connector types and are discussed in greater length in Adding a DataSet Using a Data Connector.

​
Credentials Pane

This pane contains fields for entering credentials to connect to your Domo developer account. The following table describes what is needed for each field:

Field

Description

OneDrive App Client ID

Enter the client ID associated with your registered OneDrive app.

OneDrive App Client Secret

Enter the client secret associated with your registered OneDrive app.

Domo Client ID

Enter your client ID associated with your Domo Developer account.

Domo Client Secret

Enter your client secret associated with your Domo Developer account.
Once you have entered valid credentials, you can use the same account any time you go to set up a new Domo-OneDrive connection. You can manage connector accounts in the Accounts tab in the Data Center. For more information about this tab, see Managing User Accounts for Connectors.

​
Details Pane

This pane contains a number of fields for specifying your data and indicating where it’s going.

Menu

Description

Input DataSet ID

Enter the DataSet ID (GUID) for the DataSet you want to copy to a OneDrive folder or workspace. You can find the ID by opening the details view for the DataSet in the Data Center and looking at the portion of the URL following datasources/ .

For example, in the URL https://mycompany.domo.com/datasources/845305d8-da3d-4107-a9d6-13ef3f86d4a4/details/overview , the DataSet ID is 845305d8-da3d-4107-a9d6-13ef3f86d4a4.

Enter Folder Path

Enter complete folder path (not case-sensitive) in which you want to writeback data. If you leave this blank, data will be written back into the root folder.

Example: Test/Test1/Test2/ will writeback data into Test2 folder in onedrive.

Select Filename

Select how you want to choose the file where data will be copied.

  • Use Input DataSet GUID . The filename will be the number you entered for Domo DataSet ID .

  • Use Input DataSet Name . The filename will be the same as that of the input DataSet.

  • Enter File Name . You will give the file a custom name in the File Name field.

Filename

Enter output file name.

If you wish to add current date to the file name please use the macro <current_date> or <current_date-1>. Example: If fileName is domo_current_date . Output file generated in Onedrive would be domo_(todays date in format yyyy-MM-dd) like domo_2019-07-16.

Select File Encoding

Select the encoding with which the file is to be written back to Onedrive. If no encoding is selected, the file is written back in UTF-8 encoding.

​
Other Panes

For information about the remaining sections of the connector interface, including how to configure scheduling, retry, and update options, see Adding a DataSet Using a Data Connector.
