Old Magic ETL Tiles: Edit Columns

​

Intro

This article describes in detail most of the Edit Columns tiles in Magic ETL, including the following:

• Add Constants
• Calculator
• Collapse Columns
• Combine Columns
• Date Operations
• Group By
• Select Columns
• Set Column Type
• Split Column
• Uncollapse Columns

This topic does not discuss the Rank & Window tiles. For information about these tiles, see Magic ETL Tiles: Rank and Window. For information about creating a Magic ETL DataFlow, see Creating a Magic ETL DataFlow. For information about the Data Center, see Data Center Layout.

​

Add Constants

The Add Constants tile lets you add a column with constant values. To configure the Add Constants tile,

1. Click the Add Constants tile in the canvas.
2. (Optional) Rename the tile by clicking , then entering the name you want.
3. Enter the name of the new column.
4. Select the column type.

   Column Type	Description
   Text	Contains text and numbers (which are treated as text).
   Decimal	Contains numbers in decimal notation.
   Decimal (Fixed)	Contains decimal numbers with a fixed number of digits after the decimal point.
   Whole Number	Contains numbers without a decimal part.
   Date	Contains date values.
   Date and Time	Contains date and time values.

5. Enter the constant value, date, date and time, or leave it blank.

​

Calculator

The Calculator tile lets you add a column with values from a simple calculation. To configure the Calculator tile,

1. Click the Calculator tile in the canvas.
2. (Optional) Rename the tile by clicking , then entering the name you want.
3. Enter the name of the new column.
4. Select the operation you want.

   Operation	Description
   Addition	Adds values from two columns.
   Subtrtile	Subtracts values from two columns.
   Multiplication	Multiplies values from two columns.
   Division	Divides values from two columns.
   Ceiling	Returns the highest value for each series in a numeric column.
   Floor	Returns the lowest value for each series in a numeric column.

5. Select the columns to use or specify the values you want.

​

Collapse Columns

The Collapse Columns tile lets you “unpivot” or “normalize” data in tables, transforming multiple columns in a single row into a single column with multiple rows. This tile is useful only for unpivoting data in which the number of columns stays the same. If you add another column of data to the original file, this tile does not collapse or unpivot the new column. Example For example, the Collapse Columns tile converts data in this pivoted format… … to data in this format… … using this configuration: To configure the Collapse Columns tile,

1. Click the Collapse Columns tile in the canvas.
2. (Optional) Rename the tile by clicking the edit icon, then entering the name you want.

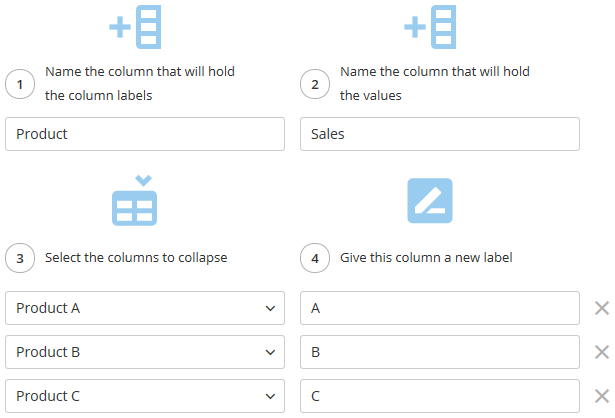

3. Enter the name of the column you want to create to contain the column headings from the columns to collapse. For example, “Product”.
4. Enter the name of the column you want to create to contain the row values from the columns to be collapsed. For example, “Sales”.
5. For each column you want to collapse, do the following:
   1. Select a column to normalize. For example, “Product A”.
   2. Enter a value representing the column header to be normalized. The value appears in the row of the new column. For example, “A”.
   3. (Conditional) If you want to collapse another column, then click Add Column.

​

Combine Columns

The Combine Columns tile lets you combine values from multiple columns into one column. For example, you could combine first name and last name from two columns into a new, full name column. Video - Combining Columns in Magic ETL To configure the Combine Columns tile,

1. Click the Combine Columns tile in the canvas.
2. (Optional) Rename the tile by clicking , then entering the name you want.
3. Enter the name of the new column.
4. Specify the character to use to separate the combined values.
5. (Optional) Remove the original columns after they are combined.
6. Select the columns to combine.

​

Date Operations

The Date Operations tile lets you add a column with values from a date-based calculation. To configure the Date Operations tile,

1. Click the Date Operations tile in the canvas.
2. (Optional) Rename the tile by clicking , then entering the name you want.
3. Enter the name of the new column.
4. Select the date operation you want.

   Operation	Description
   Add to date	Returns the result of adding a unit of measurement to values in a date column. Units of measurement include months, weeks, days, hours, minutes, seconds, or milliseconds.
   Subtract from date	Returns the result of subtracting a unit of measurement from values in a date column. Units of measurement include months, weeks, days, hours, minutes, seconds, or milliseconds.
   Difference between dates	Returns the difference in a unit of measurement between two dates. Units of measurement include days, working days, hours, minutes, seconds, milliseconds.
   Year of date	Returns the year for values in a date column.
   Quarter of date	Returns the quarter for values in a date column.
   Month of date	Returns the month for values in a date column.
   Day of year	Returns the numerical day of the year for values in a date column.
   Day of month	Returns the numerical day of the month for values in a date column.
   Day of week	Returns the numerical day of the week for values in a date column.
   Week of year	Returns the numerical week for values in a date column. Weeks are Sun-Sat. Week 1 is the first week with a Saturday in this year.

5. Select the columns to use or specify the values you want.

​

Group By

The Group By tile lets you aggregate values from multiple columns into one column. For example, you could calculate the average sales per product or get the number of yellow shirts in stock. Video - Using Group By in Magic ETL To configure the Group By tile,

1. Click the Group By tile in the canvas.
2. (Optional) Rename the tile by clicking , then entering the name you want.
3. Select the columns in the grouping.
4. For each column you want to add, do the following:
   1. Enter the name of the new column.
   2. Select the columns to aggregate and fill the new column.
   3. Select the aggregation type to use.

      Type	Description	Data Types Available For
      Count	Returns the number of non-null values in the column.	Decimal, Whole Number, Text, Date
      Count including nulls	Returns the number of all values in the column, including nulls.	Decimal, Whole Number, Text, Date
      Count distinct	Returns the number of unique values in the column.	Decimal, Whole Number, Text, Date
      First non-null value	Returns the first non-null value.	Decimal, Whole Number, Text, Date
      Last non-null value	Returns the last non-null value.	Decimal, Whole Number, Text, Date
      First value	Returns the first value (including null).	Decimal, Whole Number, Text, Date
      Last value	Returns the last value (including null).	Decimal, Whole Number, Text, Date
      Sum	Sums all of the values in the column.	Decimal, Whole Number
      Average	Returns the average of all of the values in the column.	Decimal, Whole Number
      Median	Returns the median of all of the values in the column.	Decimal, Whole Number
      Minimum	Returns the minimum value in the column.	Decimal, Whole Number, Date
      Maximum	Returns the maximum value in the column.	Decimal, Whole Number, Date
      Standard deviation	Returns the standard deviation for the values in the column.	Decimal, Whole Number
      Combine strings separated by,	Combines all of the text values in the column, separating them with commas.	Text

   4. (Conditional) If you want to add a column, then click Add Column.
      Tip: You can preview the data transformed by a tile by running a preview, clicking the tile in the canvas, then clicking the Preview tab.

​

Select Columns

The Select Columns tile lets you select columns to include, reorder columns, and rename column headings. Example For example, the Select Columns tile transforms these columns in this data… … to this… … using this configuration: Video - Renaming Fields in Magic ETL To configure the Select Columns tile,

1. Click the Select Columns tile in the canvas.
2. (Optional) Rename the tile by clicking , then entering the name you want.
3. Select the columns you want to include (or exclude) by doing any of the following:
   1. Click Add Column, select a column you want. Repeat to add other columns.
   2. Click Add All Columns, then exclude columns by clicking the X associated with the column. For example, remove “Order Quarter”.
4. Reorder columns by clicking and dragging a column to the order position you want. For example, moving “Order Date” after “Product Container”.
5. For each column heading you want to rename, enter the new name of the column heading. For example, renaming “Product Base Margin” to “Base Margin”.
   Tip: You can preview the data transformed by a tile by running a preview, clicking the tile in the canvas, then clicking the Preview tab.

​

Set Column Type

The Set Column Type tile lets you change the data type of a column (for example, from number to text). For more information about data types, see Understanding Chart Data. Example For example, the Set Column Type tile transforms this data… … to this… … using this configuration: To configure the Set Column Type tile,

1. Click the Set Column Type tile in the canvas.
2. (Optional) Rename the tile by clicking , then entering the name you want.

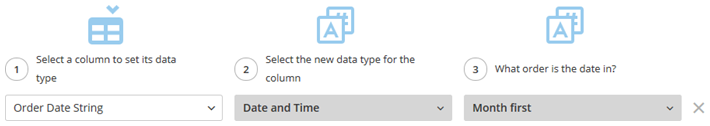

3. For each column where you want to set the data type, do the following:
   1. Select the column you want to set. For example, “Order Date String”.
   2. Select the data type you want for the column.

      Data Type	Description
      Text	Contains string values.
      Decimal	Contains numbers in decimal notation.
      Decimal (Fixed)	Contains decimal numbers with a fixed number of digits after the decimal point.
      Whole Number	Contains numbers without a decimal part.
      Date	Contains date values.
      Date and Time	Contains date and time values.

   3. (Conditional) If you want to add another column, then click Add Column.
      Tip: You can preview the data transformed by a tile by running a preview, clicking the tile in the canvas, then clicking the Preview tab.

​

Split Column

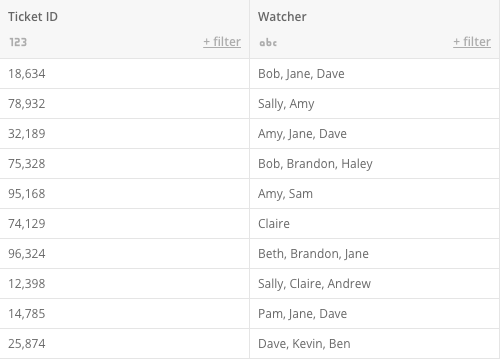

The Split Column tile lets you split a single string column into multiple columns by a specific delimiter. Example For example, the Split Column tile converts data in this format… …to data in this format… …using this configuration: To configure the Split Column tile,

1. Click the Split Column tile in the canvas.
2. (Optional) Rename the tile by clicking , then entering the name you want.
3. Select the column you want to split.
4. Choose the delimiter on which the string should be separated.
5. Next, decide whether to keep the extra splits in the last column specified in step 4. For example, in row 1 in the table above, the extra split Ben exists in the last column Watcher Split 1.
6. Lastly, add and name as many columns as needed. In the example above, you can see there are some rows that did not have 3 values to split, so those values remain blank in those columns.
   Note: If you have more values to split than columns created and choose to not keep the extra splits, the values are not placed in any column.

​

Uncollapse Columns

The Uncollapse Columns tile lets you “pivot” or de-normalize data in tables using key-value pairs, transforming a single column with multiple rows into multiple columns in a single row. Example For example, the Uncollapse Columns tile converts data in this format… … to data in this format… … using this configuration: To configure the Uncollapse Columns tile,

1. Click the Uncollapse Columns tile in the canvas.
2. (Optional) Rename the tile by clicking , then entering the name you want.
3. Enter the name of the key column you want to uncollapse into new column headers. For example, “Product”.
4. Select the column to use to group the row values of the new columns. For example, “Month”.
5. For each new column you want to create from the key column, do the following:
   1. Enter the name of the new column header. For example, “Product A”.
   2. Enter a value from the key column that represents the column header to be uncollapsed. For example, “A”.
   3. Select the value column to use to fill the row value of the new column.
   4. For example, “Sales”.
   Note: For each column you add to be uncollapsed, select the same value column.
   5. (Conditional) If you want to add another column, then click Add Column.
      Tip: You can preview the data transformed by a tile by running a preview, clicking the tile in the canvas, then clicking the Preview tab.
