The In Range Gauge lets you see and visualize values within and outside of a range. In Analyzer, you can find it under Chart types > Gauges > In range gauge. Set your expected upper and lower values and create cards using the In Range Gauge to display your data.
Powering In Range Gauge

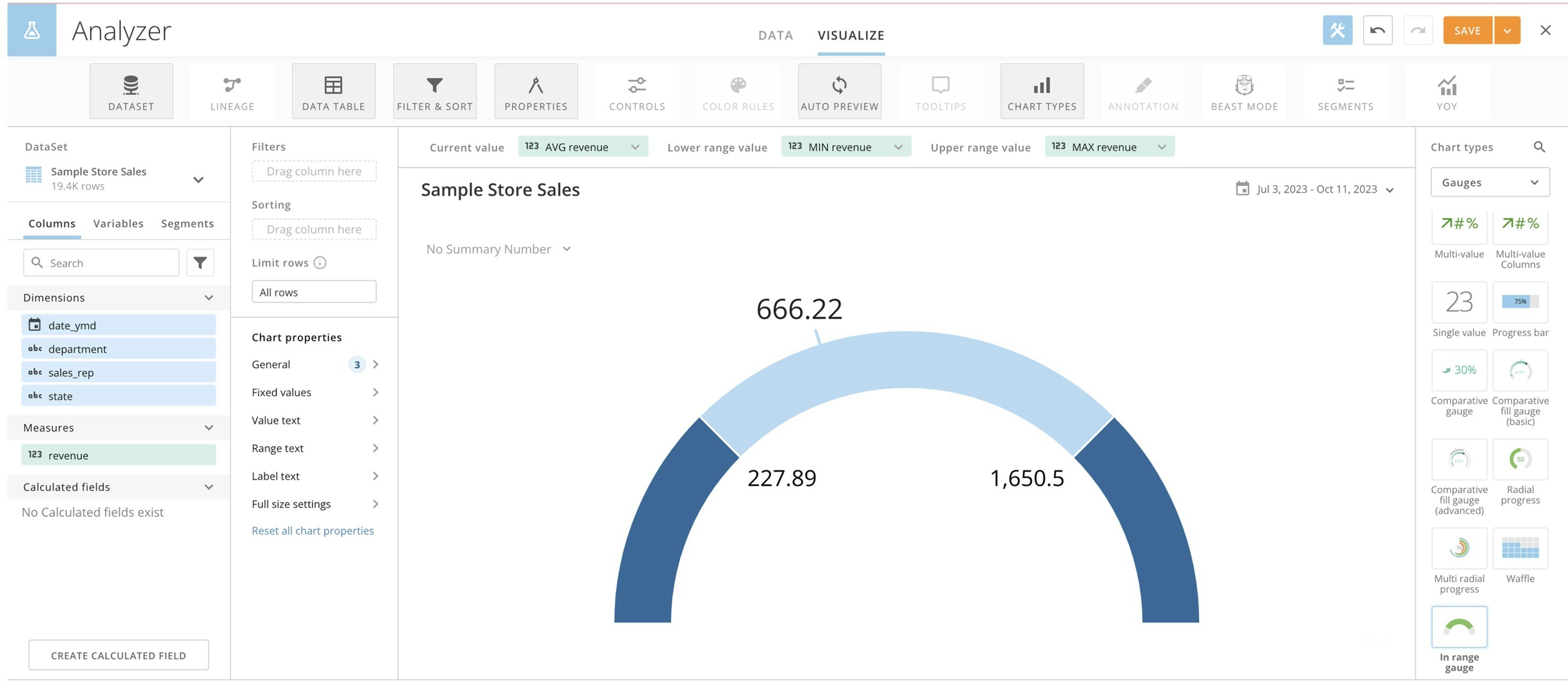

The In Range Gauge requires you to set the Current Value, Lower range value, and Upper range value for the chart. You must ensure that each of these values is numerical. Configure the values as follows:- The Current Value needs to be either a DataSet with a singular value or an aggregated field from the DataSet, such as performing a SUM on the value.
- The Lower range value needs to be a smaller value/field from your DataSet than the Upper range value. Your current value displays either within or outside of the lower and upper range values depending on your data.
Customizing In Range Gauge
You can customize the appearance of an In Range Gauge by editing its Chart Properties. Chart properties are available in the following categories. The table lists the unique properties of an In Range Gauge.- General — Learn about Width percent and Label text.
- Fixed values
- Text
- Full size — Learn about Full size properties.
Property | Description | Example |
|---|---|---|

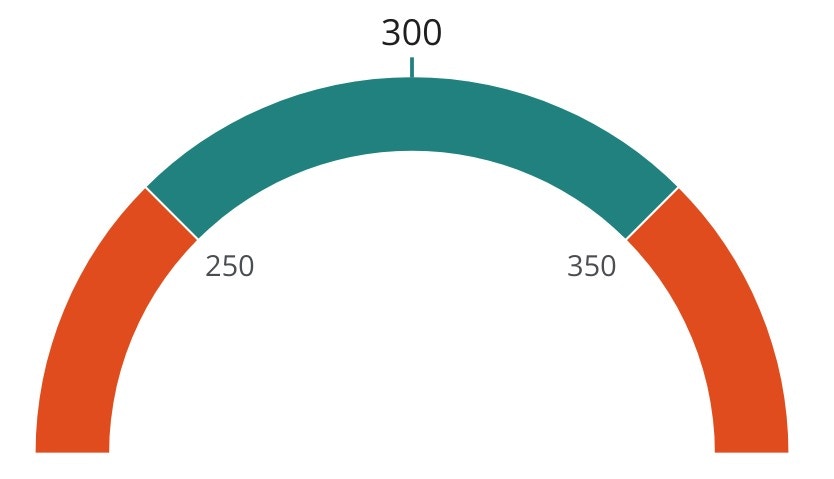

General > Gauge style | Sets the style of the gauge to be displayed: Default, Arc, or Linear. |  |
General > In range color | Sets the color displayed when the gauge value is in range. | — |
General > Default color | Sets the color displayed on the gauge outside of the highlighted area. | — |
General > Out of range color | Sets the color displayed when the gauge value is out of range. | — |
General > Hide range values | When set, the range values are not displayed on the range. | — |
General > Auto abbreviate value | When set, the value is abbreviated if over 1,000.00. | — |
General > Auto abbreviate range values | When set, the range values are abbreviated if over 1,000.00 | — |
Fixed values > Lower range value | Sets a fixed lower range value if not specified by a column of data. | — |
Fixed values > Upper range value | Sets a fixed upper range value if not specified by a column of data. | — |
Text > Value font size | Sets the font size for the value text of the gauge: Default, XXX-Large, XX-Large, X-Large, Large, Medium – Large, Medium, Medium – Small, Small, X-Small, or XX-Small | — |
Text > Range font size | Sets the font size for the range text of the gauge: Default, XXX-Large, XX-Large, X-Large, Large, Medium – Large, Medium, Medium – Small, Small, X-Small, or XX-Small | — |
Text > Label font size | Sets the font size for the label text of the gauge: Default, XXX-Large, XX-Large, X-Large, Large, Medium – Large, Medium, Medium – Small, Small, X-Small, or XX-Small | — |
